What is an ABS system and how does it work in a car?

What is an ABS system and how does it work in a car?

The Anti-lock Braking System (ABS) has evolved from its inception in Formula 1 cars in the 1960s to become a standard feature in modern automobiles, motorcycles, and even e-bikes. Its primary function is to prevent wheel lock-up during braking, significantly reducing braking distances and enhancing vehicle control, especially in adverse road and weather conditions.
​

The Advantage of ABS Compared to the Past
ABS, as its name suggests, prevents the wheels from locking up during braking. This feature is crucial for maintaining control and shortening braking distances, particularly on slippery surfaces. Studies show that ABS-equipped vehicles have approximately 10% shorter braking distances on dry roads and up to 30% shorter distances in wet conditions compared to non-ABS vehicles.

How Does an ABS System Work?

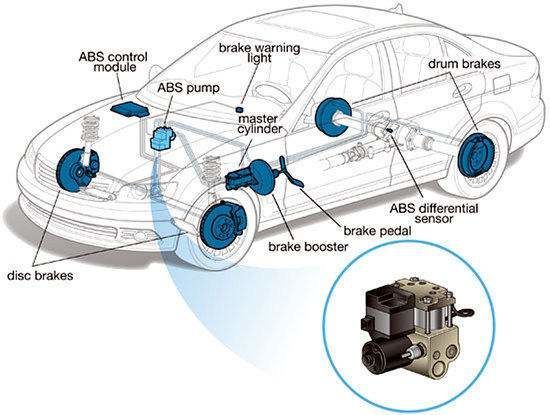

At its core, an ABS system employs a "pumping" mechanism to prevent wheel lock-up. This process involves three main components: the pump motor, the Hydraulic Control Unit (HCU), and the ABS Electronic Control Unit (ECU).

• Pump Motor:
  The pump motor generates the necessary pressure to maintain braking performance and initiates the pumping action when wheel lock-up is detected.
• HCU:
  The Hydraulic Control Unit consists of valves and channels responsible for regulating hydraulic pressure to prevent wheel lock-up.
• ABS ECU:
  This electronic control unit processes data from wheel sensors and pressure sensors to determine when intervention is required. It triggers the pump motor to initiate the pumping action, ensuring optimal braking performance.

ABS with ESP
Many modern ABS units are integrated with Electronic Stability Program (ESP) technology, further enhancing vehicle stability and control. ESP complements ABS by correcting understeer or oversteer conditions, ensuring the vehicle maintains its intended direction of travel. This combination significantly improves overall driving safety.

Faulty ABS Unit? Common Causes and Complaints
Despite their advancements, ABS units can experience malfunctions, often signaled by warning lights or unexpected activation. Common causes of ABS defects include vibrations, wiring short circuits, and moisture ingress. These issues can lead to various complaints, such as ABS pump motor failure, communication errors, and sensor malfunctions.

Understanding the functionality of ABS systems is essential for maximizing vehicle safety and performance. With their ability to prevent wheel lock-up and enhance control, ABS units play a critical role in modern automotive technology. By addressing common issues and implementing proper maintenance procedures, drivers can ensure their ABS systems operate effectively, contributing to safer roadways for all.
