Understanding the Function and Importance of Crankshaft Position Sensors (CKP)

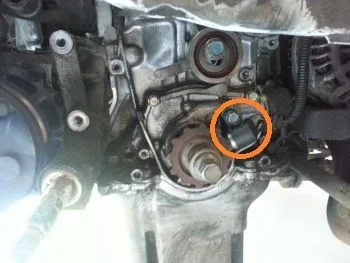

If you're a petrolhead, grasping the fundamentals of a Crankshaft Position Sensor (CKP) can elevate your automotive knowledge. In this article, we delve into the intricate workings of CKP sensors, shedding light on their significance as a cornerstone of engine functionality. We'll illustrate these concepts using the Ford RQB engine (4 cylinders/1.8-liter injection/96 kW), as mounted in our vehicles, providing a comprehensive guide applicable to most combustion engines.
Understanding the Function and Importance of Crankshaft Position Sensors (CKP)
Unraveling the Engine's Essential Component: Exploring the Working Principles of CKP Sensors
What is a Crankshaft Position Sensor (CKP)?
A CKP sensor is a magnetic marvel, generating voltage by interacting with a toothed wheel attached to the crankshaft. These teeth, strategically placed, provide crucial information to the Engine Control Module (ECM) about piston positions throughout the engine cycle. Whether in your Lotus Seven VM77 or a restored Mini SPI, CKP sensors play a uniform role in combustion engines, ensuring optimal performance.
CKP's Role in Ignition and Injection Systems
The CKP sensor's primary role encompasses two pivotal systems:
The Intricacies of the Target Wheel and Signal Generation
Within the target wheel, typically featuring around 58 teeth (varies by manufacturer), certain teeth are "missing." These voids, along with the remaining teeth, serve as reference points. When these gaps align with the CKP sensor, a voltage shift occurs, triggering a signal change sent to the ECM. Conversely, alignment with intact teeth results in a voltage rise, further modulating the signal.
Diverse CKP Sensor Types
Two prominent CKP sensor types exist:
Identifying Faulty CKP Sensors
A failing CKP sensor can lead to a range of issues, the most notable being an engine that cranks but won't start. However, this symptom is not exclusive to CKP issues. One distinctive sign is a non-functioning fuel pump, as the ECM, without a CKP signal, withholds power or ground from the pump. While exceptions exist, this symptom commonly points to a problem in inductive CKP sensors.
Exploring Further
For a deeper dive into automotive insights, repair, and diagnostics, explore our blog at Electronic Repair Company. Expand your knowledge and stay informed on all things auto-tuning.
Visit Our Blog:
Electronic Repair Company
https://www.electronicrepairegypt.com/auto-tuning-blog
Unraveling the Engine's Essential Component: Exploring the Working Principles of CKP Sensors
What is a Crankshaft Position Sensor (CKP)?
A CKP sensor is a magnetic marvel, generating voltage by interacting with a toothed wheel attached to the crankshaft. These teeth, strategically placed, provide crucial information to the Engine Control Module (ECM) about piston positions throughout the engine cycle. Whether in your Lotus Seven VM77 or a restored Mini SPI, CKP sensors play a uniform role in combustion engines, ensuring optimal performance.
CKP's Role in Ignition and Injection Systems
The CKP sensor's primary role encompasses two pivotal systems:
- Ignition System: In gasoline engines, the ignition system is responsible for producing sparks via spark plugs. CKP sensors enable precision by informing the ECM about piston positions, aligning ignition timing perfectly.
- Injection System: For both diesel and gasoline engines, the CKP sensor plays a critical role in the injection system. By providing real-time data on piston positions, alongside inputs from other sensors, the ECM calculates optimal fuel injection timings, aiding fuel efficiency and performance.
The Intricacies of the Target Wheel and Signal Generation
Within the target wheel, typically featuring around 58 teeth (varies by manufacturer), certain teeth are "missing." These voids, along with the remaining teeth, serve as reference points. When these gaps align with the CKP sensor, a voltage shift occurs, triggering a signal change sent to the ECM. Conversely, alignment with intact teeth results in a voltage rise, further modulating the signal.
Diverse CKP Sensor Types
Two prominent CKP sensor types exist:
- Inductive Type: Common in engines like the RQB, this sensor generates an analog voltage signal solely through the inductive effect caused by rotating wheel magnetism. No external power is required.
- Optical (Hall) Type: This variant, powered by the ECM, generates a square analog signal. It boasts increased accuracy due to external power assistance.
Identifying Faulty CKP Sensors
A failing CKP sensor can lead to a range of issues, the most notable being an engine that cranks but won't start. However, this symptom is not exclusive to CKP issues. One distinctive sign is a non-functioning fuel pump, as the ECM, without a CKP signal, withholds power or ground from the pump. While exceptions exist, this symptom commonly points to a problem in inductive CKP sensors.
Exploring Further
For a deeper dive into automotive insights, repair, and diagnostics, explore our blog at Electronic Repair Company. Expand your knowledge and stay informed on all things auto-tuning.
Visit Our Blog:
Electronic Repair Company
https://www.electronicrepairegypt.com/auto-tuning-blog
