Understanding the Automotive CAN Bus System: Deep Dive into Its Function, Communication, and Diagnosis
The evolution of automobiles has seen remarkable advancements in technology, ensuring improved performance, safety, and environmental responsibility. One such significant advancement is the Controller Area Network (CAN).
The Genesis of CAN
A Controller Area Network, popularly known as CAN, is a robust network of independent controllers. Established as a serial communications protocol, CAN is instrumental in bolstering distributed real-time control with an impressive degree of security. The fruits of the collaboration between Bosch and Intel, the CAN bus standard as we know it, has graced the automotive world since 1990.
Decades ago, vehicles were simpler. There were fewer sensors and modules, each connected with individual point-to-point wires, primarily because real-time information exchange wasn't as crucial.
However, rising environmental concerns ushered in stricter regulations, mandating the incorporation of an increased number of sensors and modules to monitor and control emissions. Such additions demanded more complex wire harnesses, adding weight, complexity, and cost.
Recognizing the need for a more efficient system, Robert Bosch GmbH innovated the CAN protocol in 1985. This allowed different modules to communicate using a single, common cable.
Key Takeaways:
- CAN: Established in 1990, this standard has revolutionized vehicular communications.
- Evolution: The rise of environmental concerns necessitated the development of efficient communication between vehicle sensors and modules.
- Efficiency: CAN offers a streamlined communication channel for various modules via a shared cable.
How Does CAN Operate?

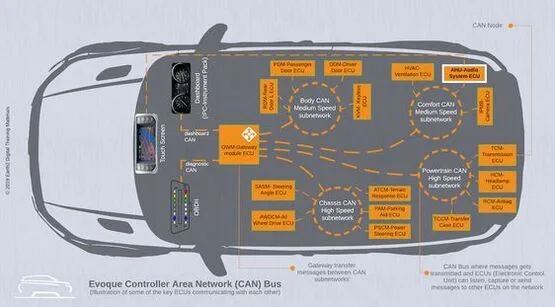

In essence, the Controller Area Network (CAN) functions as a conduit allowing Electronic Control Units (ECUs) to communicate seamlessly. This communication is done without relying on a central computer. The beauty of CAN lies in its simplicity - messages are relayed in a system that's not only cost-effective and robust but also demands minimal physical wiring.
With the automotive industry's rapid adoption of the CAN protocol, the International Organization for Standardization (ISO) unveiled the CAN standard 'ISO 11898' in 1993. Since then, several versions have been introduced, like ISO11898-2 (High-Speed CAN) and ISO 11898-3 (Low Speed/Fault Tolerant CAN).
Key Takeaways:
- Simplicity: CAN enables ECUs to communicate efficiently sans a central computer.
- Versions: ISO standards like ISO11898-2 and ISO 11898-3 cater to different CAN requirements.
High-Speed CAN vs. Low-Speed/Fault Tolerant CAN
Diving deeper, it's essential to differentiate between the two primarily used types of CAN: High-Speed CAN and Low Speed/Fault Tolerant CAN.
- High-Speed CAN (ISO 11898-2): Predominantly used in the automotive sector due to its swift transfer rate and wire simplicity. This protocol can manage up to 1 Mbit/sec and employs a linear bus with termination resistors at both ends.
- Low Speed/Fault Tolerant CAN (ISO 11898-3): Features termination resistors at each module, allowing communication even if a wire fails. Its transfer rate ranges between 40 Kbit/s to 125 Kbit/s.
Key Takeaways:
- High-Speed: Renowned for its speed and simplicity.
- Low-Speed/Fault Tolerant: Known for its resilience, especially in the event of wire failures.
Advantages of the CAN Bus System
The CAN system offers a plethora of benefits:
- Cost-Efficiency: Single CAN interface for all ECUs, reducing physical infrastructure and costs.
- Centralization: Enables central error diagnosis and configuration.
- Robustness: Immune to subsystem failures and electromagnetic disturbances.
- Efficiency: Prioritizes messages based on IDs ensuring high-priority messages are uninterrupted.
- Flexibility: Facilitates easy modification and inclusion of additional nodes.
The Intricacies of CAN Bus Communication
Understanding CAN necessitates diving into its communication mechanism. It uses two wires, named CAN high and CAN low. When idle, both lines carry 2.5V. During data transmission, the differential between the two lines is maintained at 2.5V. This voltage differential-based communication makes CAN impervious to electrical disturbances, securing its position as a reliable choice for vehicular communication.
Key Takeaways:
- Communication Lines: CAN high and CAN low.
- Reliability: The voltage differential approach minimizes external interference.
Diagnosis and Troubleshooting
A malfunction in the CAN line can manifest in various ways - from simple communication glitches between modules to an outright breakdown in communication with diagnostic tools. Technicians can manually diagnose issues using an oscilloscope. However, modern scan tools can simplify this task exponentially.
To delve deeper into automotive electronics and their intricacies, visit our blog at Electronic Repair Company.
