The fuel injection section of the ECU

4/15/2023


The engine control unit (ECU) is an electronic device that controls the functions of the engine. The fuel injection section of the ECU is responsible for regulating the amount of fuel delivered to the engine, ensuring optimal fuel efficiency and performance. In this article, we will discuss the functions of the fuel injection section of the ECU, common failures, and how to test the system.

Functions of the ECU fuel injection section:

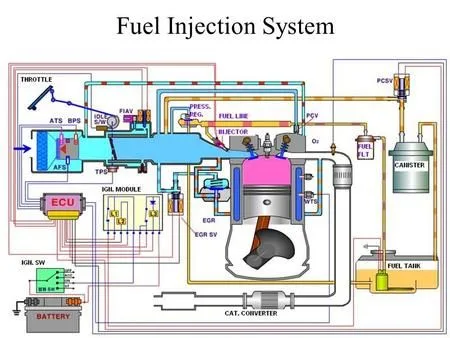

The fuel injection section of the ECU is responsible for controlling the amount of fuel that is injected into the engine. It does this by monitoring various sensors that measure factors such as the engine's temperature, air flow, and oxygen levels. Based on this information, the ECU adjusts the amount of fuel that is delivered to the engine, ensuring that it runs at peak performance and fuel efficiency.


The ECU fuel injection section also controls the timing of the fuel injection. This is critical for ensuring that the fuel is delivered at the right time for optimal combustion. If the fuel is injected too early or too late, it can result in poor engine performance and decreased fuel efficiency.

Common failures of the ECU fuel injection section:
One of the most common failures of the ECU fuel injection section is a malfunctioning injector. Injectors can become clogged with debris or fail due to wear and tear. When this happens, the ECU may not be able to deliver the correct amount of fuel to the engine, resulting in poor performance and reduced fuel efficiency.


Another common failure of the ECU fuel injection section is a malfunctioning sensor. Sensors can fail due to wiring issues, corrosion, or other factors. When a sensor fails, the ECU may not receive accurate information about the engine's conditions, resulting in incorrect fuel delivery and poor performance.

How to test the ECU fuel injection section: Testing the ECU fuel injection section requires specialized equipment and knowledge. Here are the basic steps to follow:
  1. Check the fuel pressure: Use a fuel pressure gauge to measure the fuel pressure at the fuel rail. Low fuel pressure can indicate a malfunctioning fuel pump or clogged fuel filter.
  2. Check the injectors: Use an injector tester to check the operation of each injector. If an injector fails to operate, it may need to be replaced.
  3. Check the sensors: Use a multimeter to test the resistance of each sensor. Compare the results to the manufacturer's specifications. If the readings are outside of the recommended range, the sensor may need to be replaced.
  4. Check the wiring: Inspect the wiring for any signs of damage or corrosion. Make sure that all connections are secure and free of debris.
