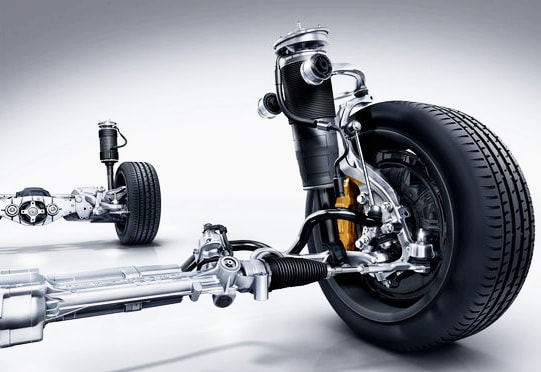

Suspension systems are the backbone of any vehicle, ensuring stability, comfort, and performance on the road. Among the critical components of a suspension setup are toe-in, camber, caster, and other nuanced parameters that significantly influence how your car handles various driving conditions. In this comprehensive guide, we'll unravel the mysteries behind these elements, empowering you to understand and optimize your vehicle's suspension for an unparalleled driving experience.
​

1. Toe-in:
Toe-in refers to the alignment of the front wheels, where the distance between the front tires in front of the axle is smaller than that behind the axle. This setup, also known as positive toe-in, enhances straight-line stability and improves cornering performance by preventing wheel divergence while driving.

2. Camber:
Camber, the angle between the wheel's vertical axis and the road surface, plays a pivotal role in cornering and tire wear. Positive camber occurs when the top of the wheel tilts outward, while negative camber tilts inward. A slightly negative camber is common in modern vehicles, enhancing cornering grip and maximizing tire contact during spirited driving.

3. Caster:
Caster influences steering feel and stability, with low caster making steering lighter and more sensitive, while high caster enhances stability at higher speeds. It's the inclination of the kingpin viewed from the side and affects the vehicle's ability to self-center after a turn.

4. Track Difference Angle:
The track difference angle accounts for variations in the paths followed by individual wheels during cornering. Ideally, the center of the turning circle aligns with the rear axle extension, minimizing lateral forces and ensuring smooth cornering without compromising stability.

5. Wheel Offset:
Wheel offset angle determines the deviation of the wheel contact points from the geometric travel axis. It affects steering response and vehicle stability, with positive offset angles moving the wheel forward and negative angles moving it rearward.

6. Fall:
Camber, when combined with the vehicle's inclination, influences tire contact patch and straight-line stability. Understanding the fall or basic fall is crucial for optimizing suspension geometry and ensuring consistent performance.

7. Rear Wheel Position:
Lateral movement of the rear axle carrier necessitates checking and replacing rubber mounts to maintain suspension integrity and alignment.
​
8. Track:
Track deviation from zero affects wheel alignment and stability, with slight toe-in or toe-out adjustments optimizing straight-line stability and minimizing tire wear.

9. Geometric Travel Axis:
The geometric travel axis represents the bisector of rear wheel tracks, influencing vehicle dynamics and steering response. Deviations from the center plane can result in driving axle angles, affecting straight-line stability and handling.

Special:
The steering roll radius, or the distance from the wheel contact area center to the kingpin's penetration point, is a critical parameter in steering geometry, influencing vehicle maneuverability and cornering behavior.

Mastering automotive suspension involves a deep understanding of these intricate parameters and their interactions. By optimizing toe-in, camber, caster, and other factors, you can unlock the full potential of your vehicle, whether on the track or the open road.
With this knowledge in hand, you're poised to elevate your driving experience and conquer every corner with confidence.
