Electric power steering EPS

Electric power steering (EPS) has been adopted by most automotive manufacturers as a standard feature in modern vehicles. This technology is considered superior to traditional hydraulic power steering systems in terms of fuel efficiency, response time, and overall vehicle control. The EPS system is controlled by an Electric Control Unit (ECU), which plays a crucial role in ensuring optimal performance and safety of the vehicle.

What is an Electric Power Steering ECU?
The Electric Power Steering ECU is an electronic control unit that manages and controls the EPS system. The ECU receives input signals from various sensors, such as the steering angle sensor, vehicle speed sensor, and torque sensor, and uses this information to calculate the optimal amount of power assistance required for the steering system. The ECU is responsible for controlling the electric motor that provides the power assistance to the steering system.

How does an Electric Power Steering ECU work?

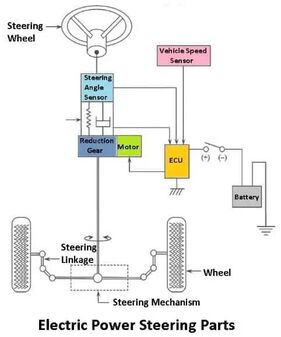

The EPS system works by using an electric motor to assist the driver in turning the steering wheel. The amount of assistance provided by the electric motor is determined by the ECU, which receives input signals from various sensors. The ECU processes this information and sends commands to the electric motor to provide the appropriate amount of assistance.
One of the critical components of the EPS system is the torque sensor. This sensor measures the torque applied to the steering wheel by the driver and sends this information to the ECU. The ECU uses this data to calculate the required amount of assistance required to turn the steering wheel. The ECU also takes into account other factors such as the vehicle's speed, the steering angle, and the road conditions.

In addition to the torque sensor, the EPS system also includes a steering angle sensor, which detects the position of the steering wheel. This information is used by the ECU to determine the direction in which the vehicle is turning and how much assistance is required.
The EPS system also includes a vehicle speed sensor, which measures the speed of the vehicle. The ECU uses this data to adjust the amount of power assistance provided by the electric motor. At higher speeds, less assistance is required, while at lower speeds, more assistance is provided.

The Electric Power Steering ECU is a critical component of the EPS system. It receives input signals from various sensors and calculates the optimal amount of power assistance required for the steering system. By controlling the electric motor, the ECU ensures that the steering system provides the right amount of assistance to the driver at all times, resulting in a safer and more comfortable driving experience.
