Unlocking Benz DTS Monaco Seed Key Security: A Comprehensive Guide

9/14/2022

Unlocking Benz DTS Monaco Seed Key Security: A Comprehensive Guide

In the fast-paced world of automotive technology, staying ahead often requires delving into the intricacies of vehicle electronic control units (ECUs). Benz DTS Monaco Seed Key Security is a critical aspect that ensures these ECUs remain safeguarded from unauthorized access. In this comprehensive guide, we'll delve into what Seed-key Security is and provide you with expert insights and instructions on how to effectively navigate it, making variant coding a breeze for your automotive needs.

Understanding Seed-key Security
Seed-key security is a sophisticated layer of protection utilized by certain communication protocols in automotive ECUs. Its primary purpose is to grant access to ECU functions while maintaining stringent security measures to prevent unauthorized entry.

Here's the fundamental concept: The ECU generates a "seed," which is essentially a short string of byte values. To gain access, a specialized tool must transform this seed into a key using a secret algorithm. The same algorithm is applied internally by the ECU. If the tool's calculated key matches the ECU's key, access is granted. This means that the tool effectively "knows" the secret algorithm.

When Do You Need Seed Key?
Seed key becomes indispensable when your ECU cannot be unlocked for variant coding with "Steuergerat entriegeln (DJ_Zugriffsberechtigung)." Attempting to change variant codings without a valid seed key will result in errors.

ECUs with Seed Key Protection
Seed key protection is not uniform across all ECUs, but some of the notable ones include:

MEMO
MEMOAMG
MED 177
MED1775
CR61
CR60NFZ
CR41
CR41R
CR43
CR43_T1N
SIM271DE20
CRD3S2
CRD3NPZ
IC_204 for activation of AMG menu

Unlocking ECUs with Seed Key: Step-by-Step Guide
We've outlined two methods to unlock ECUs with seed key protection: one for Vediamo and one for DTS Monaco.

Vediamo - CBF File Method

Launch Vediamo and connect to the ECU through the CBF file (e.g., MEMO).
Press F12 or right-click on the ECU and select "MANUAL COMMAND INPUT."
Input "27 OB," which is the command for the ECU to send you a seed key request: "67 OB xx xx xx xx xx."
Share this request with someone who can calculate the seed key answer for you.
Once you have the seed key answer, input "27 OC xx xx xx xx" into Vediamo. If the ECU responds with "67 OC," it means the ECU is unlocked and ready for variant coding.
You're done! You can now proceed with changing variant coding. The ECU will remain unlocked until it's reset or disconnected.

Vediamo - SMR-D File Method

Launch Vediamo and connect to the ECU through the SMR-D file (e.g., MED40).
Go to SECURITY ACCESS or use the MANUAL COMMAND INPUT method.
If you choose SECURITY ACCESS, press "Request_Seed_Variantcoding" to obtain the seed request: "Request_Seed: XX XX XX XX." If you use the MANUAL COMMAND INPUT method, input "27 OB" to receive the seed key request.
Calculate the seed key answer and press "Send_Key_Variantcoding," entering "XX XX XX XX." If you used the MANUAL COMMAND INPUT method, input "27 OC xx xx xx xx" instead.
If the ECU responds with "eALL_POSITIVE" or "67 OC," it means the ECU is unlocked and ready for variant coding.
Your ECU is now unlocked and ready for variant coding. It will remain unlocked until it's reset or disconnected.

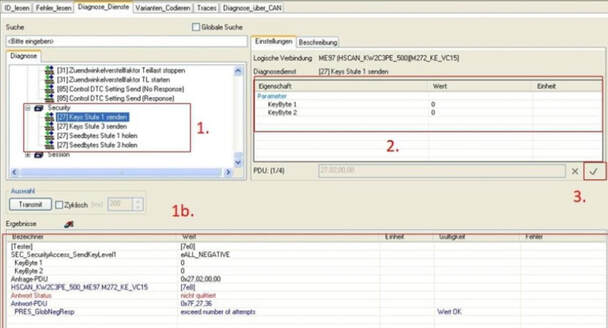

DTS Monaco - SMR-D File Method

Start DTS Monaco and connect to the ECU through the SMR-D file (e.g., MED40).
Navigate to SECURITY ACCESS.
Request the seed key by selecting "Request Seed Variantcoding." You will receive a "Request Seed" in the format "0xXXXXXXXX."
Calculate the seed key answer and enter "XX XX XX XX" in the "Settings Seed Key" field.
Press "Send Key Variantcoding." If the ECU responds with "RESPONSE.PDU 0x67,0c," it means the ECU is unlocked and ready for variant coding.
You're all set! The ECU is now unlocked and can be used for variant coding. It will remain unlocked until it's reset or disconnected.

Unlocking Without Seed Key (SCN Online)
An alternative method for unlocking without a seed key is to:

Connect the plug-in.
Access MED40 or MED177 via Xentry.
Initiate an online SCN operation. Note that the plug-in will interrupt the connection.
Enter Vediamo to MED40.
Perform variant coding.

Seed-key Security in Benz DTS Monaco is a vital aspect of automotive ECU management. By following the instructions outlined in this guide, you can successfully unlock ECUs with seed key protection, ensuring a seamless variant coding process for your automotive projects.

For more automotive insights and expert advice, visit our blog at Electronic Repair Company. Stay ahead in the ever-evolving world of automotive technology.
