Torque Converter How It Works, Key Components, and Common Issues
The torque converter is a vital component in automatic transmissions, enabling seamless power transfer from the engine to the wheels. By utilizing fluid dynamics and advanced components, it ensures a smooth, efficient driving experience while optimizing vehicle performance.
In this blog, we’ll explore how a torque converter works, its main components, common issues, and essential maintenance tips to keep your transmission in top shape. Let’s dive in!
In this blog, we’ll explore how a torque converter works, its main components, common issues, and essential maintenance tips to keep your transmission in top shape. Let’s dive in!
A torque converter acts as a bridge between the engine and the transmission in vehicles with automatic transmissions. It replaces the traditional clutch found in manual transmissions, enabling the engine to spin independently of the wheels when the vehicle is stationary.
The torque converter works using fluid coupling and torque multiplication to transfer power. Here’s a breakdown of its operation:

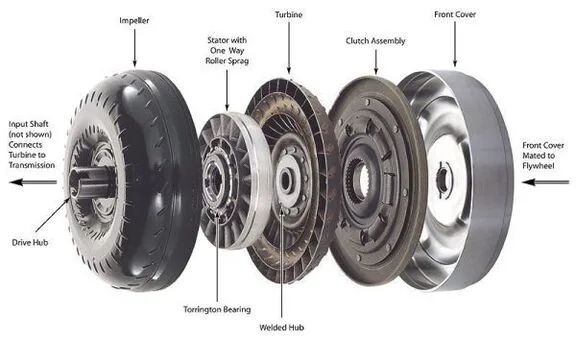

Main Parts of a Torque Converter
Understanding the components of a torque converter is key to diagnosing potential problems.
Here are its critical parts:
1. Impeller
The impeller, driven by the engine crankshaft, is a fan-like component with curved blades. It creates a suction force that accelerates transmission fluid toward the turbine.
2. Turbine
The turbine is connected to the transmission input shaft. It receives the fluid flow from the impeller and converts it into rotational force to drive the transmission.
3. Stator
The stator sits between the impeller and turbine. Its role is to redirect fluid back to the impeller, which improves torque multiplication and overall efficiency.
4. Lock-Up Clutch
The lock-up clutch connects the impeller and turbine at higher speeds, reducing slippage and improving fuel efficiency.
5. Transmission Fluid
Specialized transmission fluid acts as the working medium inside the torque converter. It transmits power, lubricates internal parts, and provides cooling.
6. Damper
A damper absorbs shocks and vibrations, ensuring a smoother driving experience and reducing wear on internal components.
7. Housing
The housing encloses the torque converter’s components, protects them from external elements, and helps dissipate heat during operation.
8. Input Shaft
The input shaft connects the torque converter to the transmission, transferring rotational power from the turbine to the gears.
9. Sprag (One-Way Clutch)
Some torque converters feature a one-way clutch (sprag) to prevent backward rotation during conditions like sudden deceleration or engine braking.
10. Torque Converter Clutch (TCC)
In modern vehicles, the TCC electronically engages or disengages the lock-up clutch for better efficiency and performance.
Common Problems with Torque Converters
Despite their reliability, torque converters can develop issues over time. Here are some common problems and symptoms to watch for:
1. Slipping
If the torque converter slips, you might notice the engine revving without a proportional increase in speed. This can result from worn components or low fluid pressure.
2. Overheating
Inadequate cooling or low transmission fluid can cause the torque converter to overheat, potentially damaging internal parts and reducing performance.
3. Shuddering or Vibrations
Excessive vibrations during acceleration may indicate problems like worn bearings, damaged clutches, or imbalanced components inside the torque converter.
4. Lock-Up Clutch Malfunction
If the lock-up clutch fails to engage or disengage properly, it can lead to poor fuel efficiency, rough shifts, or even stalling at idle.
5. Fluid Contamination
Dirty or degraded transmission fluid can affect torque converter performance. Metal shavings, debris, or contaminants can block fluid flow and damage internal components.
Maintenance Tips for Torque Converters
Proper maintenance ensures a longer lifespan for your torque converter and automatic transmission. Here are expert tips to keep it running smoothly:
1. Regular Transmission Fluid Service
Follow your vehicle manufacturer’s guidelines for changing transmission fluid and filters. Fresh fluid maintains proper lubrication and cooling.
2. Check Fluid Levels
Regularly check the transmission fluid level using the dipstick. Low fluid levels can cause overheating and poor performance.
3. Use the Right Transmission Fluid
Always use the recommended transmission fluid type for your vehicle to ensure optimal performance.
4. Monitor for Symptoms
Pay attention to unusual symptoms like slipping, shuddering, or overheating. Address these issues promptly to avoid major repairs.
5. Keep the Cooling System Healthy
Ensure your vehicle’s transmission cooling system is functioning properly to prevent overheating.
The torque converter plays a critical role in automatic transmissions, ensuring smooth power transfer and efficient vehicle operation. By understanding its components, common issues, and proper maintenance, you can avoid costly repairs and enjoy a seamless driving experience.
If you suspect torque converter problems, consult a qualified technician to diagnose and repair the issue promptly. Regular maintenance and fluid checks will go a long way in keeping your transmission performing like new.
Did you find this guide helpful? Share your thoughts or questions below!
The torque converter works using fluid coupling and torque multiplication to transfer power. Here’s a breakdown of its operation:
- Fluid Coupling: The engine drives a component called the impeller, which accelerates the transmission fluid. This fluid flows to the turbine, causing it to spin and transfer rotational force to the transmission.
- Fluid Momentum: As the transmission fluid moves between the impeller and turbine, it creates momentum that transmits engine power to the transmission.
- Torque Multiplication: A stationary component called the stator redirects fluid flow to amplify torque at low engine speeds, improving acceleration.
- Lock-Up Clutch Engagement: At higher speeds (usually above 30-40 mph), the lock-up clutch directly connects the engine and transmission, eliminating fluid slippage for improved fuel efficiency.
Main Parts of a Torque Converter
Understanding the components of a torque converter is key to diagnosing potential problems.
Here are its critical parts:
1. Impeller
The impeller, driven by the engine crankshaft, is a fan-like component with curved blades. It creates a suction force that accelerates transmission fluid toward the turbine.
2. Turbine
The turbine is connected to the transmission input shaft. It receives the fluid flow from the impeller and converts it into rotational force to drive the transmission.
3. Stator
The stator sits between the impeller and turbine. Its role is to redirect fluid back to the impeller, which improves torque multiplication and overall efficiency.
4. Lock-Up Clutch
The lock-up clutch connects the impeller and turbine at higher speeds, reducing slippage and improving fuel efficiency.
5. Transmission Fluid
Specialized transmission fluid acts as the working medium inside the torque converter. It transmits power, lubricates internal parts, and provides cooling.
6. Damper
A damper absorbs shocks and vibrations, ensuring a smoother driving experience and reducing wear on internal components.
7. Housing
The housing encloses the torque converter’s components, protects them from external elements, and helps dissipate heat during operation.
8. Input Shaft
The input shaft connects the torque converter to the transmission, transferring rotational power from the turbine to the gears.
9. Sprag (One-Way Clutch)
Some torque converters feature a one-way clutch (sprag) to prevent backward rotation during conditions like sudden deceleration or engine braking.
10. Torque Converter Clutch (TCC)
In modern vehicles, the TCC electronically engages or disengages the lock-up clutch for better efficiency and performance.
Common Problems with Torque Converters
Despite their reliability, torque converters can develop issues over time. Here are some common problems and symptoms to watch for:
1. Slipping
If the torque converter slips, you might notice the engine revving without a proportional increase in speed. This can result from worn components or low fluid pressure.
2. Overheating
Inadequate cooling or low transmission fluid can cause the torque converter to overheat, potentially damaging internal parts and reducing performance.
3. Shuddering or Vibrations
Excessive vibrations during acceleration may indicate problems like worn bearings, damaged clutches, or imbalanced components inside the torque converter.
4. Lock-Up Clutch Malfunction
If the lock-up clutch fails to engage or disengage properly, it can lead to poor fuel efficiency, rough shifts, or even stalling at idle.
5. Fluid Contamination
Dirty or degraded transmission fluid can affect torque converter performance. Metal shavings, debris, or contaminants can block fluid flow and damage internal components.
Maintenance Tips for Torque Converters
Proper maintenance ensures a longer lifespan for your torque converter and automatic transmission. Here are expert tips to keep it running smoothly:
1. Regular Transmission Fluid Service
Follow your vehicle manufacturer’s guidelines for changing transmission fluid and filters. Fresh fluid maintains proper lubrication and cooling.
2. Check Fluid Levels
Regularly check the transmission fluid level using the dipstick. Low fluid levels can cause overheating and poor performance.
3. Use the Right Transmission Fluid
Always use the recommended transmission fluid type for your vehicle to ensure optimal performance.
4. Monitor for Symptoms
Pay attention to unusual symptoms like slipping, shuddering, or overheating. Address these issues promptly to avoid major repairs.
5. Keep the Cooling System Healthy
Ensure your vehicle’s transmission cooling system is functioning properly to prevent overheating.
The torque converter plays a critical role in automatic transmissions, ensuring smooth power transfer and efficient vehicle operation. By understanding its components, common issues, and proper maintenance, you can avoid costly repairs and enjoy a seamless driving experience.
If you suspect torque converter problems, consult a qualified technician to diagnose and repair the issue promptly. Regular maintenance and fluid checks will go a long way in keeping your transmission performing like new.
Did you find this guide helpful? Share your thoughts or questions below!
