Understanding the Start of Injection in Engines: Impacts & Optimization | Automotive Expertise

The world of automotive engines is vast and intricate, with various parameters influencing its efficiency, performance, and emission. Among these, the 'Start of Injection' or SOI stands paramount. This article takes you through the ins and outs of SOI, its implications, and how it plays a major role in engine optimization.

1. What is Start of Injection (SOI)?
The Start of Injection refers to the exact moment fuel begins its journey into the combustion chamber. It's a pivotal juncture, setting the stage for the subsequent combustion process. This phase is defined in terms of degrees of crankshaft rotation relative to the crankshaft's top dead center (TDC) – the very point the nozzle opens and fuel begins entering the chamber.

2. Deciphering the Start of Injection Table

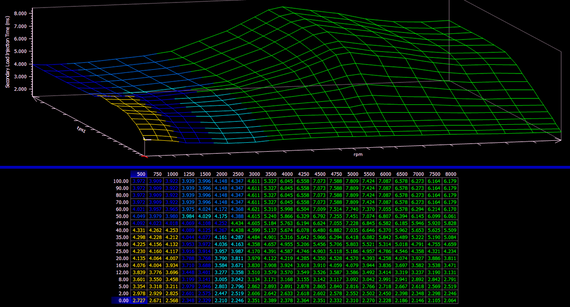

If you've heard of the SOI table, especially in the context of WinOLS, it's essentially a roadmap. This table provides insights into when injection should start, factoring in variables such as engine load, speed, and temperature.

3. Impact of SOI on Engine Performance and Emission
The timing of fuel injection affects various aspects of an engine:

Emission Levels: The start of injection influences the combustion's onset, which in turn impacts emissions like soot, NOX, HC, and CO.
Fuel Consumption: Efficient injection timing can optimize fuel consumption, ensuring the engine performs at its peak while consuming minimal fuel.
Combustion Noise: Ever wondered about the sounds an engine makes? The timing of the injection can affect the combustion noise levels.

The engine's interior dynamics, such as the piston's position relative to TDC and the intake port's shape, play a role in determining the air flow inside the combustion chamber. This flow, in conjunction with the injection start, affects the air and fuel mixture and, consequently, the emission levels.

Adjusting SOI According to Engine Load
The engine's load heavily influences the required start of injection, necessitating a load-based adjustment approach. All this critical data, from required injection start points to speed and temperature considerations, is stored electronically in an engine data map. This map ensures optimal fuel consumption, minimal pollutant emissions, and controlled noise levels at any power output.
