Understanding the Importance of the Manifold Absolute Pressure (MAP) Sensor

Comprehensive Guide to MAP Sensor Symptoms, Diagnosis, and Replacement

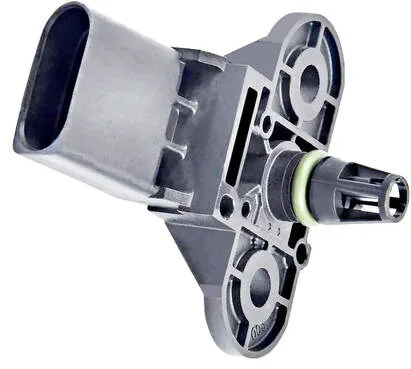

The manifold absolute pressure (MAP) sensor is a crucial component of a vehicle’s engine management system, especially in those equipped with fuel injection. The primary function of the MAP sensor is to provide the Powertrain Control Module (PCM/ECM) with real-time data about the pressure within the intake manifold. This data is essential for the PCM/ECM to calculate the optimal air-fuel mixture for efficient combustion. Over time, the MAP sensor can degrade, leading to incorrect data transmission and various engine performance issues.
​

Symptoms of a Failing MAP Sensor

1. Check Engine Light:
   The engine control unit (ECU) monitors all sensors, including the MAP sensor. If the sensor's values are out of range, the check engine light will illuminate.
2. Lean Air-Fuel Mixture:
   A faulty MAP sensor may cause the engine to receive a lean air-fuel mixture, leading to poor engine performance and potential misfires.
3. Rich Air-Fuel Mixture:
   Conversely, a bad MAP sensor can signal the ECU to inject too much fuel, resulting in a rich mixture, decreased fuel efficiency, and engine performance problems.
4. Stalling or Rough Idle:
   Incorrect air-fuel mixtures due to a failing MAP sensor can cause the engine to stall or idle roughly.
5. Misfires:
   Misfires occur when combustion fails within the engine cylinder, often due to an improper air-fuel mixture influenced by a bad MAP sensor.
6. Increased Emission Levels:
   An incorrect air-fuel mixture can disturb emission levels, making it difficult for the vehicle to meet emission standards.
7. Poor Engine Performance:
   A faulty MAP sensor can cause a noticeable drop in engine performance, particularly during acceleration.
8. Backfires:
   Unburned fuel may ignite in the exhaust system, causing backfires, which can be loud and potentially damaging.
9. Hard Starting Conditions:
   The MAP sensor helps determine the air pressure needed for starting the engine. A faulty sensor can make it difficult to start the car.
10. Changed Fuel Consumption:
    A malfunctioning MAP sensor can lead to significant changes in fuel consumption, either increasing or decreasing fuel usage.

Locating and Replacing the MAP Sensor
The MAP sensor is typically located on the intake manifold but can also be found on the car’s body connected by a vacuum hose. Refer to your vehicle’s service manual for the exact location. The average replacement cost for a MAP sensor ranges from $60 to $170, with labor costs between $30 and $70. If you have basic mechanical knowledge, you can replace the sensor yourself, potentially saving on labor costs.

Diagnosing a Faulty MAP Sensor
Diagnosing a failing MAP sensor involves both visual inspection and testing:

1. Locate the Sensor: Refer to your vehicle’s service manual to find the MAP sensor.
2. Check Vacuum Hose and Connections: Ensure the vacuum hose and electrical connections are secure and in good condition.
3. Clean the Sensor: Use an electronic cleaner to clean the sensor and recheck the readings with a diagnostic scanner.
4. Test with a Diagnostic Scanner: With the engine off but the ignition on, the MAP sensor should read close to 1 bar or 14.5 psi.
5. Inspect Wirings: Measure the wirings between the ECU and the MAP sensor. Replace the sensor if it’s faulty; otherwise, repair the wirings as needed.

The MAP sensor plays a vital role in maintaining your vehicle’s engine performance. Recognizing the symptoms of a failing MAP sensor and addressing them promptly can prevent significant engine damage and maintain optimal vehicle performance. Regular maintenance and timely replacement of the MAP sensor can save you from costly repairs and ensure your vehicle runs smoothly.
