Understanding Fuel Injection Systems: Types, Pros, and Cons

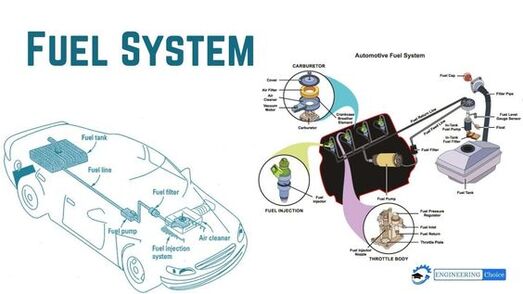

Fuel injection systems play a pivotal role in modern internal combustion engines, offering more efficient and controlled fuel delivery than traditional carburetors. In this comprehensive guide, we explore the structure, operation, advantages, and disadvantages of three common types of fuel injection systems: indirect single-point, indirect multi-point, and direct fuel injection.
​

Types of Fuel Injection Systems
I. Indirect Fuel Injection, Single Point
The single-point, indirect fuel injection system features a single fuel injector positioned in front of the throttle on the intake manifold. Here's how it operates:

• When the throttle valve opens, incoming intake air mixes with fuel from the injector to create an air-to-air mixture.
• This mixture is distributed unevenly to different intake manifolds and engine cylinders.

Advantages:

• Cost-effective, as one injector can supply fuel to multiple cylinders.
• Simplified system structure with only one nozzle on the intake manifold.

Disadvantages:

• Uneven distribution of air-fuel mixture to cylinders due to varying intake manifold lengths and angles.
• Potential for uneven combustion, leading to vibrations and torque variations.
• Distance of injection point from the cylinder can result in discrepancies between actual fuel intake and ECU calculations.
• Some fuel may settle on the intake manifold walls, evaporating more slowly and affecting combustion accuracy.

II. Indirect Multi-Point Fuel Injection
The multi-point, indirect fuel injection system employs multiple nozzles, each corresponding to a cylinder. These nozzles are positioned in front of the intake valves, injecting fuel directly into the cylinders after the intake valves open.
Advantages:

• Enhanced precision in controlling fuel delivery due to closer proximity of injection points to cylinders.
• Uniform fuel distribution across cylinders.

Disadvantages:

• Higher cost, as more nozzles are needed.
• Potential for fuel deposits on intake valves over time, affecting valve performance and combustion chamber sealing.

III. Direct Fuel Injection
Direct fuel injection is similar to multi-point indirect injection, but it positions injectors on the cylinder head, enabling fuel to be injected directly into the cylinders.
Advantages:

• Enhanced precision, similar to multi-point injection.
• Reduced fuel waste, as fuel evaporates quickly in the high-pressure, high-temperature cylinder environment.
• Two operating modes:
  • Stratified Mixture (Low to Medium Loads): Fuel is injected during the compression stroke, creating a stratified mixture with less fuel, similar to diesel engine operation, which saves fuel.
  • Homogeneous Mixture (High Load): Fuel is injected during the intake stroke to create a more uniform mixture, boosting engine power for high-load operation.

Disadvantages:

• Minimal fuel deposition on cylinder walls, as compared to indirect injection systems.

Understanding these fuel injection systems is crucial for optimizing engine performance and fuel efficiency. The choice of injection system depends on the specific requirements of the engine and its intended use.

Fuel injection technology continues to evolve, with manufacturers developing more efficient and precise systems. Stay tuned for the latest advancements in the automotive industry to keep your engine running at its best.
