Understanding BMW Footwell Module (FRM) and Its Role in Automotive Lighting Control
In the world of BMW vehicles, precision engineering meets cutting-edge technology, and one vital component contributing to this synergy is the Footwell Module (FRM). This unassuming yet critical device plays a pivotal role in controlling various aspects of your BMW's lighting, safety features, and adaptive headlights. In this comprehensive guide, we'll delve into the intricacies of the BMW Footwell Module, its functions, and its significance in the automotive world.
What Is the BMW Footwell Module?

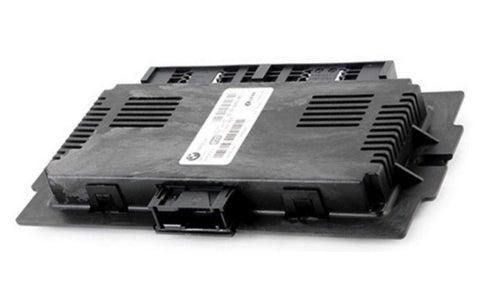

The BMW Footwell Module, commonly referred to as the FRM, serves as an electrical nexus located in the driver's footwell. Its primary function is to interface with several critical components within your BMW, particularly those related to lighting and safety. The FRM acts as a bridge between the doors, lighting controls, and the dashboard, facilitating seamless communication and control.
Key Components That Interface with the Footwell Module
The BMW Footwell Module receives signals and inputs from various sources to perform its functions effectively. Here are some of the key components that interface with the FRM:
Control Units Involved in the Lighting System
The BMW lighting system is a complex network of control units that ensures optimal illumination and safety. Some of the key control units involved include:
System Functions of the BMW Footwell Module
The BMW Footwell Module serves multiple essential functions, including:
Footwell Module Variants
The BMW Footwell Module comes in various variants, each tailored to specific vehicle configurations:
Enhance Your BMW Experience
Understanding the BMW Footwell Module and its vital role in lighting, safety, and control is crucial for any BMW enthusiast or owner. As you explore the world of BMW, consider the importance of this unassuming yet indispensable component that ensures your driving experience is both safe and well-illuminated.
For comprehensive BMW coding and programming courses, check out our offerings at Electronic Repair Egypt.
The BMW Footwell Module, commonly referred to as the FRM, serves as an electrical nexus located in the driver's footwell. Its primary function is to interface with several critical components within your BMW, particularly those related to lighting and safety. The FRM acts as a bridge between the doors, lighting controls, and the dashboard, facilitating seamless communication and control.
Key Components That Interface with the Footwell Module
The BMW Footwell Module receives signals and inputs from various sources to perform its functions effectively. Here are some of the key components that interface with the FRM:
- Height Sensors: These sensors play a vital role in adjusting lighting based on the vehicle's height and position.
- Reversing Light Switch: The FRM processes signals from the reversing light switch, enabling proper control of rear lights during reversing.
- Brake Light Switch: It's responsible for coordinating brake light activation, enhancing safety during braking.
- Hazard Warning Flasher Switch: The FRM ensures proper functioning of hazard warning lights for emergency situations.
- Light Switch: Your BMW's light switch interface with the FRM for optimal control of lighting.
- Driver's Door Switch Block: Control of various functions, such as windows and mirrors, is facilitated through the driver's door switch block.
- Door Contacts in Front Doors: These contacts provide information about door status and contribute to safety and lighting control.
- Driver's Door Lock: The FRM manages functions related to the driver's door lock, enhancing security and convenience.
Control Units Involved in the Lighting System
The BMW lighting system is a complex network of control units that ensures optimal illumination and safety. Some of the key control units involved include:
- ACSM or MRS (Crash Safety Module / Multiple Restraint System): Ensures safety by coordinating airbag deployment and restraint systems.
- AHM (Trailer Module): Manages trailer attachment detection and trailer lighting control.
- DSC (Dynamic Stability Control): Activates brake lights during automatic braking to meet legal requirements.
- DSC: FLA (High-Beam Assistant): Collaborates with the FRM to provide high-beam headlight control based on traffic conditions.
- FZD (Roof Function Center): Responsible for interior lighting control in the roof area.
- JBE (Junction Box Electronics): Manages lighting in the luggage compartment and glove box.
- LDM (Longitudinal Dynamics Management): Collaborates with the FRM to assist with lane changes, particularly when using Active Cruise Control.
- RLS / RLSS (Rain/Light Sensor or Rain/Light Solar Sensor): Measures ambient brightness and collaborates with the FRM for lighting control based on external conditions.
- SZL (Steering Column Switch Cluster): Processes signals from the turn-signal/high-beam switch, controlling various exterior and interior lighting components.
System Functions of the BMW Footwell Module
The BMW Footwell Module serves multiple essential functions, including:
- Gateway Between LIN Bus and K-CAN: It facilitates communication between the LIN bus and the K-CAN, ensuring seamless data transfer.
- Waking by Various Signals: The FRM can be activated by signals such as K-CAN activity, terminal 15, hazard warning switch activation, and changes in door contact status.
- Storing Vehicle Order: It stores the vehicle's configuration and order, ensuring seamless functionality.
Footwell Module Variants
The BMW Footwell Module comes in various variants, each tailored to specific vehicle configurations:
- LOW: Without fog lamps, Xenon, or Adaptive Headlight (AHL).
- NSW, BASIS: With fog lamps, without Xenon or AHL.
- XE: With fog lamps, Xenon, without AHL.
- AHL: With fog lamps, Xenon, and Adaptive Headlight (AHL).
Enhance Your BMW Experience
Understanding the BMW Footwell Module and its vital role in lighting, safety, and control is crucial for any BMW enthusiast or owner. As you explore the world of BMW, consider the importance of this unassuming yet indispensable component that ensures your driving experience is both safe and well-illuminated.
For comprehensive BMW coding and programming courses, check out our offerings at Electronic Repair Egypt.
