BMW Headlight Vertical Aim Control Failure
If you're a BMW owner, you've likely enjoyed the luxury, performance, and precision engineering that these cars offer. However, like any vehicle, BMWs can encounter specific technical issues over time. One common problem many BMW drivers face is the "headlight vertical aim control failure" error. This blog post will explore this issue in depth, covering what it is, common symptoms, potential causes, and effective solutions.
What is BMW Headlight Vertical Aim Control?
The headlight vertical aim control is a system in BMW vehicles equipped with dynamic Xenon or LED headlights. This system automatically adjusts the vertical aim of the headlights based on the vehicle's load and road conditions, ensuring optimal illumination. It’s a crucial feature that enhances visibility and safety, especially when driving at night or in adverse weather conditions.
Common Symptoms of Headlight Vertical Aim Control Failure
When there is a malfunction in the headlight vertical aim control system, several symptoms might arise, including:
Causes of Headlight Vertical Aim Control Failure
Several factors can contribute to the failure of BMW’s headlight vertical aim control, including:
Diagnosing the Problem
Diagnosing the root cause of the headlight vertical aim control failure involves checking the following:
Solutions to Headlight Vertical Aim Control Failure
Preventive Measures
To avoid headlight vertical aim control failure in the future, consider the following preventive measures:
Headlight vertical aim control failure is a common issue in many BMW models, including the 1 Series, 3 Series, 4 Series, and X Series. Recognizing the symptoms early, understanding the potential causes, and taking appropriate action can help maintain your vehicle's safety and functionality. Whether it's a faulty TMS module, actuator, or a more complex communication issue, addressing these problems promptly will ensure your BMW’s headlights perform optimally, keeping you safe on the road.
The headlight vertical aim control is a system in BMW vehicles equipped with dynamic Xenon or LED headlights. This system automatically adjusts the vertical aim of the headlights based on the vehicle's load and road conditions, ensuring optimal illumination. It’s a crucial feature that enhances visibility and safety, especially when driving at night or in adverse weather conditions.
Common Symptoms of Headlight Vertical Aim Control Failure
When there is a malfunction in the headlight vertical aim control system, several symptoms might arise, including:
- Erratic Headlight Movement:
Upon starting your BMW, the headlights may level out but then move up and down irregularly. This behavior is a clear sign of a malfunctioning vertical aim control system. - Dynamic Xenon Lights Not Responding:
In vehicles with dynamic Xenon lights, the headlights should turn in the direction of the steering to provide better visibility around corners. If the lights fail to move when turning the steering wheel, this indicates a problem. - Flickering or Non-Functioning Headlights:
If your headlights flicker or fail to turn on entirely, this could be linked to the vertical aim control failure. - Fault Messages on the Dashboard:

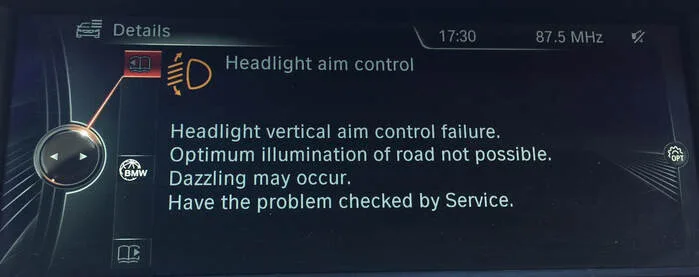

Error messages such as “headlight vertical aim control failure,” “side/daytime lights fault,” or similar warnings may appear on the vehicle's display, indicating underlying issues. - Malfunctioning Turn Signals:
Issues with front turn signals not working can also be related to problems within the headlight control module. - Inoperative Halo Rings (Angel Eyes):
In some cases, both halo rings might stop working altogether, which is another sign of potential failure in the headlight system.
Causes of Headlight Vertical Aim Control Failure
Several factors can contribute to the failure of BMW’s headlight vertical aim control, including:
- Faulty Actuator:
The actuator, which is responsible for adjusting the headlight’s aim, can malfunction. Since it is located inside the headlight assembly, accessing and repairing this part can be challenging. - TMS Module Failure:
The TMS (Transportation Management System) module controls various lighting functions, including the vertical aim of the headlights. A faulty TMS module can lead to erratic headlight behavior or failure. This module is more affordable than replacing the entire headlight housing, making it a preferred solution. - Electrical or Communication Faults:
Issues with the Lin Bus communication system, which transmits data between the vehicle’s systems and the headlight modules, can also cause aim control failure. - Environmental Factors:
Over or under-voltage, as well as extreme temperatures, can lead to faults within the headlight driver module.
Diagnosing the Problem
Diagnosing the root cause of the headlight vertical aim control failure involves checking the following:
- Diagnostic Trouble Codes (DTCs):
Using a BMW diagnostic tool, check for specific trouble codes related to the headlight driver modules. Common codes include 800FC2, 800FC3, and others, indicating faults in the headlamp driver module. - Physical Inspection:
Check the actuator and TMS module for signs of damage or wear. Ensure all electrical connections are secure and free from corrosion. - Test the Communication System:
Verify the integrity of the Lin Bus communication network to ensure there are no faults in data transmission.
Solutions to Headlight Vertical Aim Control Failure
- Replace the TMS Module:
If diagnostics point to a faulty TMS module, replacing this part is a cost-effective and reliable solution. Ensure you use a genuine BMW or OEM part for best results. - Actuator Repair or Replacement:
If the actuator within the headlight assembly is faulty, repairing or replacing it may resolve the aim control issue. Due to the complexity of accessing this part, professional service is often required. - Software Update:
In some cases, updating the vehicle's software to the latest version may fix the issue, as software glitches can cause communication errors within the headlight system. - Headlight Assembly Replacement:
As a last resort, if individual components cannot be repaired or replaced, replacing the entire headlight assembly might be necessary. This solution is often recommended by BMW dealers but is also the most expensive option.
Preventive Measures
To avoid headlight vertical aim control failure in the future, consider the following preventive measures:
- Regular Maintenance:
Routine inspections of the vehicle’s lighting system during regular maintenance can help identify potential issues before they escalate. - Environmental Protection:
Keep the headlight assemblies clean and free from moisture, which can cause corrosion and other damage. - Use Quality Parts:
Always opt for genuine or high-quality OEM parts when replacing components in your BMW’s lighting system.
Headlight vertical aim control failure is a common issue in many BMW models, including the 1 Series, 3 Series, 4 Series, and X Series. Recognizing the symptoms early, understanding the potential causes, and taking appropriate action can help maintain your vehicle's safety and functionality. Whether it's a faulty TMS module, actuator, or a more complex communication issue, addressing these problems promptly will ensure your BMW’s headlights perform optimally, keeping you safe on the road.
