ToolSet32 Guide: Rewriting VIN and AIF for E-series BMW

ToolSet32 Guide: Rewriting VIN and AIF for E-series BMW

BMW's intricate electronics are fascinating, and with tools like ToolSet32, you can go beyond the surface to manipulate vehicle data for your E-series BMW. This post will guide you through rewriting the Vehicle Identification Number (VIN) and Application Interface Framework (AIF) using Tool32.
​

What are VIN and AIF?
When tools like INPA are used to read User Interface Files (UIF), each module displays specific data including VIN and ZB. These are often referred to as the Coding VIN.

How Does Flashing Work?
Although these codes are typically written during module flashing, some tools like WinKFP can perform FLASH without writing these values. However, for post-writing, or rewriting as it's more commonly called, Tool32 (or Toolset32) can come in handy. Even more enticing is the fact that you don’t need an ICOM connection. The K+D CAN cable is sufficient.
​
Let’s Dive into the Rewriting ProcessIf you need to rewrite these values, here's how you can get it done:

1. Connect & Launch: Firstly, establish a connection with the vehicle and then initiate Tool32.
2. Navigating Tool32: Click on "File" on the top-left corner and select "LoadSGBD, Group file" or simply press F3.
3. Selecting the Module: From the module list that appears, choose the module you wish to write. For our tutorial, we’re using 33CI63F1 as a reference.
4. Getting the UIF: From the displayed list, select items in UIF, such as aif_lessen.
5. Choosing the Result: Decide on the result you wish to display from the "Results" section.
6. Initiating the Job: Click on "Job" from the top-left and select "Start Job once only".

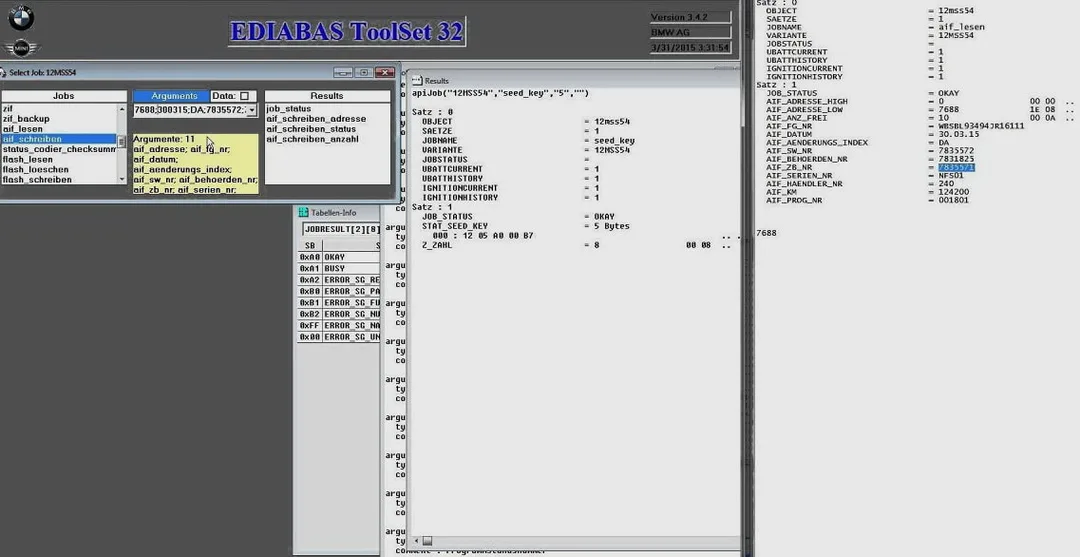

7. Interpreting the Results: A detailed result similar to the example given above will be displayed, indicating the recorded values.
8. Rewriting Values: Select "aif_schreiben" and extract the content you want to rewrite. Write this in the "Argument" section.
9. Finalizing the Rewriting: Click on "Job" again and select "Start Job once only". Your new values are now written.

Rewriting module items, especially VIN and AIF, is easier than it appears, thanks to ToolSet32. It’s essential for car enthusiasts, mechanics, and technicians who desire a deeper interaction with their BMW's electronics.

Looking for a Comprehensive BMW Course? Dive deeper into BMW electronics with our full course, available at BMW Full Account.

Remember, it's essential to ensure you have permissions and rights to modify the data of any vehicle. Always proceed with caution and ensure you're adhering to legal and safety guidelines.
