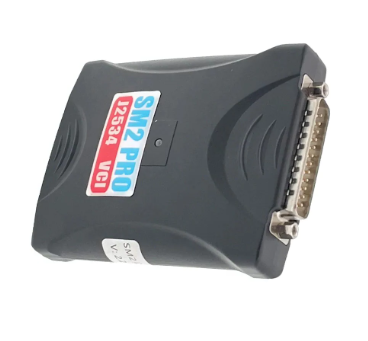

Scanmatik 2 PRO – J2534 PassThru Your Ultimate Auto Scanner
In the fast-paced world of automotive diagnostics, precision and versatility are paramount. Introducing the Scanmatik 2 PRO – J2534 PassThru, your go-to solution for diagnosing electronic control systems in today's automobiles. This professional-grade auto scanner opens up a world of possibilities for mechanics, technicians, and car enthusiasts alike.
Unleash the Power of Scanmatik 2 PRO
Professional Multi-Brand Compatibility
The Scanmatik 2 PRO is engineered to handle the electronic control systems of a wide range of car brands. Whether you're dealing with VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, or OBD2-compliant vehicles, this scanner has you covered.
Seamless Integration with Your Devices
The Scanmatik 2 PRO isn't tethered to a specific device. It's designed to work with your personal computer, tablet, or smartphone. The included software programs for both Windows and Android ensure that you can use the platform you're most comfortable with.
SAE J2534 and RP1210 Compatibility
When you install the included driver, the Scanmatik 2 PRO seamlessly integrates with third-party diagnostic software built to SAE J2534 and RP1210 standards. This means you can utilize a variety of software tools to diagnose and repair vehicles with ease.
Pinpoint Accuracy with Programming Resolution Voltages
One standout feature of the Scanmatik 2 PRO is its ability to apply programming resolution voltages to various pins of the diagnostic connector. This level of precision ensures that you can diagnose and address even the most complex electronic control system issues.
Technical Specifications
- Interfaces for Communication: USB or Bluetooth, giving you flexibility and mobility in your diagnostic work.
- Power Supply: 5 … 36V from the vehicle electrical system or USB (galvanic isolation with power).
- Current Consumption: Not more than 350mA, ensuring efficient operation.
- Wide Input Voltage Range: 5 to 55V, with internal switching power supplies of our own design.
- Protection for Power Supply Surges: "Load-Dump" protection, safeguarding your equipment.
- Supported Data Buses: 13 x ISO-9141 / ISO-14230 (K-LINE), 1 x J1850VPW, 1 x J1850PWM, 4 x CAN, 1 x Single Wire CAN.
- Built-In Multiplexer: For switching diagnostic lines, enhancing versatility.
- J2534-1 / 2 Standards Support: Comprehensive support for industry standards.
- Programming Voltage Supply (5-24V): Accessible on the OBD2 connector legs: 6, 8, 11, 12, 13, 14.
- AUX Programming Voltage Output: (Optional OBD2 + Aux cable required).
- Bluetooth Range: Not less than 10m (Class 2).
- Adapter Dimensions: 97 x 75 x 22mm, compact and portable.
- Device Weight: 1 kg in the basic complete set.
- Optional BENCH/BOOT Cable: With automatic power control suitable for using Scanmatik.
Compatibility Beyond Compare
The Scanmatik 2 PRO isn't just an auto scanner; it's a powerful tool that integrates seamlessly with other modules. It's compatible with the BitBox MG1/MD1 BENCH module and PCMFlash modules 53/71, giving you a comprehensive diagnostic and programming solution.
Trust in Quality
We take pride in the quality of our products. The Scanmatik 2 PRO features reverse polarity protection, LED indicators for power supply and ECU, and automatic power supply switching for ECU via L-line.
Get Your Scanmatik 2 PRO Today
When precision and versatility matter, the Scanmatik 2 PRO delivers. Don't compromise on your diagnostic capabilities. Invest in the future of automotive diagnostics.
Visit our blog for more insights and information: Electronic Repair Company Blog
For inquiries and orders, visit us at Electronic Repair Company.
