Porsche Cayenne Fault Codes P0107, P0192, P0642 & U0402 Explained – Causes & Fixes
If you own a Porsche Cayenne and recently faced the dreaded check engine light, you’re not alone. Many Cayenne drivers encounter fault codes like P0107, P0192, P0642, and U0402. At first glance, these codes may look confusing, but with the right knowledge, they’re not as scary as they seem.
What Do These Porsche Cayenne Codes Mean?

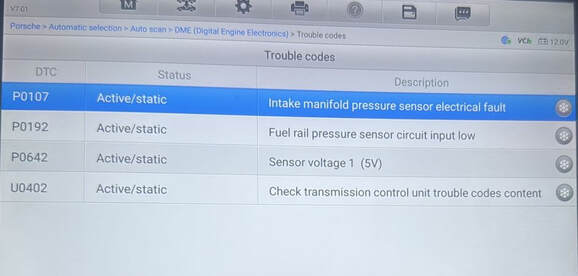

Here’s a quick breakdown of the four common codes:
Why Do These Codes Appear Together?
The real story lies in the 5V reference supply. On the Cayenne, several sensors (MAP, fuel pressure, throttle, etc.) rely on a stable 5V feed from the ECU. If one sensor internally shorts, the whole line drops — causing multiple “low input” codes.
That’s why you see P0107, P0192, and P0642 together. The U0402 is more of a “domino effect,” triggered by the unstable signals.
Step-by-Step Diagnostic Approach
Before thinking about replacing the ECU, follow these proven steps:
Common Fixes for Porsche Cayenne Owners
Real-Life Value for Cayenne Drivers
Here’s the good news: in 9 out of 10 cases, the problem is not your ECU. A shorted sensor or wiring fault is usually the root cause. That means you can fix the issue without costly ECU replacement.
By following the step-by-step approach above, you save time, avoid guesswork, and get your Cayenne back to smooth performance quickly.
Here’s a quick breakdown of the four common codes:
- P0107 – MAP Sensor Circuit Low Input
The ECU is detecting unusually low voltage from the Manifold Absolute Pressure (MAP) sensor. - P0192 – Fuel Rail Pressure Sensor Circuit Low Input
This signals that the fuel rail pressure sensor is sending a low voltage reading. - P0642 – Sensor Reference Voltage "A" Circuit Low
This one’s important: it means the ECU’s 5V reference circuit is being pulled down, which directly affects multiple sensors at once. - U0402 – Invalid Data from Transmission Control Module (TCM)
Often a side effect of unstable sensor signals, leading to communication errors between ECU and TCM.
Why Do These Codes Appear Together?
The real story lies in the 5V reference supply. On the Cayenne, several sensors (MAP, fuel pressure, throttle, etc.) rely on a stable 5V feed from the ECU. If one sensor internally shorts, the whole line drops — causing multiple “low input” codes.
That’s why you see P0107, P0192, and P0642 together. The U0402 is more of a “domino effect,” triggered by the unstable signals.
Step-by-Step Diagnostic Approach
Before thinking about replacing the ECU, follow these proven steps:
- Check 5V Reference Voltage
Use a multimeter at the MAP or fuel pressure sensor connector. You should read ~5.0V. If you see 0V or very low, move to the next step. - Unplug Sensors One by One
Disconnect MAP, fuel pressure, and throttle body sensors individually. If the 5V line returns after unplugging one sensor, you’ve found the culprit. - Inspect Wiring Harness
Look for insulation damage where the harness rubs against engine parts. Porsche Cayenne harness issues are more common than people think. - Check ECU Connectors
Make sure no corrosion or water ingress is affecting ECU pins — especially if your Cayenne has seen wet conditions.
Common Fixes for Porsche Cayenne Owners
- Replace faulty fuel pressure sensor or MAP sensor (the most common cause).
- Repair or replace damaged wiring in the 5V circuit.
- Clean ECU plugs and protect them against future moisture.
- Only suspect ECU failure if all sensors are unplugged and 5V is still missing directly at the ECU pin.
Real-Life Value for Cayenne Drivers
Here’s the good news: in 9 out of 10 cases, the problem is not your ECU. A shorted sensor or wiring fault is usually the root cause. That means you can fix the issue without costly ECU replacement.
By following the step-by-step approach above, you save time, avoid guesswork, and get your Cayenne back to smooth performance quickly.
