Nissan Qashqai TCM DTC Fix

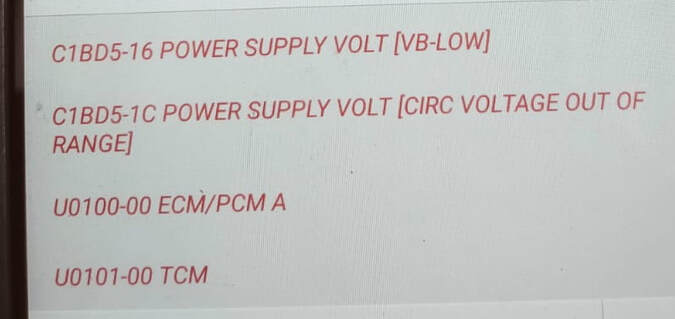

The Nissan Qashqai’s Transmission Control Module (TCM) plays a crucial role in maintaining smooth gear shifts and optimal transmission performance. However, like any other vehicle component, the TCM can experience issues over time, which might trigger Diagnostic Trouble Codes (DTCs). In this post, we'll focus on common DTCs related to the TCM in the Nissan Qashqai, specifically: C1BD5-16, C1BD5-1C, U0100-00, and U0101-00. Each of these codes points to specific issues, but don't worry—I'll walk you through the symptoms, causes, and fixes in detail.
1. C1BD5-16: Power Supply Volt [VB-LOW]
Meaning: This DTC indicates that the voltage supply to the TCM is lower than the expected value. Insufficient voltage can affect the transmission's ability to shift gears, leading to erratic performance.
Symptoms:
2. C1BD5-1C: Power Supply Volt [Circuit Voltage Out of Range]
Meaning: This code highlights that the voltage going to the TCM is either too high or too low, falling outside the acceptable range.
Symptoms:
3. U0100-00: Lost Communication with ECM/PCM A
Meaning: This code signifies a communication breakdown between the TCM and the Engine Control Module (ECM). When these systems can't communicate, the vehicle might experience serious transmission and engine issues.
Symptoms:
4. U0101-00: Lost Communication with TCM
Meaning: Similar to U0100-00, this code points to a communication failure, but in this case, it’s between the vehicle’s main control systems and the TCM. This can prevent the transmission from functioning properly.
Symptoms:
Final Steps to Fix TCM DTCs
After addressing the specific issues behind these DTCs, clear the codes using a professional diagnostic tool. Test drive the vehicle to confirm that the transmission is functioning correctly and that no warning lights or codes reappear.
If the problem persists, it may be beneficial to have the TCM reprogrammed or replaced by a Nissan-certified technician. This ensures the module is up-to-date with the latest software and communicates effectively with the vehicle’s other control modules.
Nissan Qashqai transmission issues can be frustrating, but with a clear understanding of the DTCs and how to fix them, you can resolve these problems quickly. Addressing power supply issues, maintaining stable communication between control modules, and ensuring clean wiring connections are key steps in restoring your vehicle’s performance.
Stay ahead of transmission problems by performing regular checks and maintaining the electrical systems in your Qashqai.
For more automotive tips and troubleshooting guides, be sure to check out our blog for the latest in vehicle diagnostics and repairs.
Meaning: This DTC indicates that the voltage supply to the TCM is lower than the expected value. Insufficient voltage can affect the transmission's ability to shift gears, leading to erratic performance.
Symptoms:
- Difficulty shifting gears
- Delayed or harsh gear changes
- Illuminated transmission warning light
- Weak or failing battery
- Loose or corroded battery terminals
- Faulty alternator
- Poor wiring connections to the TCM
- Start by inspecting the vehicle’s battery and alternator. Use a multimeter to check the voltage output. Ensure the battery terminals are clean and tightly secured.
- If the alternator isn't charging correctly, replace it. If battery voltage is below recommended levels, consider replacing the battery.
2. C1BD5-1C: Power Supply Volt [Circuit Voltage Out of Range]
Meaning: This code highlights that the voltage going to the TCM is either too high or too low, falling outside the acceptable range.
Symptoms:
- Erratic transmission behavior
- Reduced transmission performance
- Warning lights on the dashboard
- Faulty wiring or damaged harness leading to the TCM
- Voltage spikes from the alternator
- Malfunctioning TCM
- Inspect the wiring harness for damage or wear. Look for loose connections or damaged wires.
- Check the voltage regulator of the alternator to ensure it is maintaining a stable output.
- If the wiring and alternator are functioning properly, test the TCM for faults. A replacement might be necessary if it's malfunctioning.
3. U0100-00: Lost Communication with ECM/PCM A
Meaning: This code signifies a communication breakdown between the TCM and the Engine Control Module (ECM). When these systems can't communicate, the vehicle might experience serious transmission and engine issues.
Symptoms:
- Failure to shift gears
- Engine stalling or poor performance
- Transmission stuck in limp mode (limited gears available)
- Faulty or damaged communication wiring between the ECM and TCM
- Defective TCM or ECM
- Power or ground issues affecting either module
- Begin by inspecting the CAN bus wiring for damage. Repair or replace any faulty wiring between the ECM and TCM.
- Ensure both the ECM and TCM have proper power and ground connections.
- If the issue persists, a professional scan tool may be required to pinpoint which module is failing. Replace the faulty module (ECM or TCM) as needed.
4. U0101-00: Lost Communication with TCM
Meaning: Similar to U0100-00, this code points to a communication failure, but in this case, it’s between the vehicle’s main control systems and the TCM. This can prevent the transmission from functioning properly.
Symptoms:
- Transmission will not shift
- Vehicle stuck in one gear
- Transmission warning light illuminated
- Faulty wiring or poor connection to the TCM
- Malfunctioning TCM
- Power or grounding issues
- Inspect all connectors and wiring related to the TCM for corrosion or damage.
- Use a diagnostic tool to confirm if the TCM is faulty and replace it if necessary.
- Test the power and ground supply to the TCM, ensuring they are within manufacturer specifications.
Final Steps to Fix TCM DTCs
After addressing the specific issues behind these DTCs, clear the codes using a professional diagnostic tool. Test drive the vehicle to confirm that the transmission is functioning correctly and that no warning lights or codes reappear.
If the problem persists, it may be beneficial to have the TCM reprogrammed or replaced by a Nissan-certified technician. This ensures the module is up-to-date with the latest software and communicates effectively with the vehicle’s other control modules.
Nissan Qashqai transmission issues can be frustrating, but with a clear understanding of the DTCs and how to fix them, you can resolve these problems quickly. Addressing power supply issues, maintaining stable communication between control modules, and ensuring clean wiring connections are key steps in restoring your vehicle’s performance.
Stay ahead of transmission problems by performing regular checks and maintaining the electrical systems in your Qashqai.
For more automotive tips and troubleshooting guides, be sure to check out our blog for the latest in vehicle diagnostics and repairs.
