Understand Capacitors Basics
Capacitors are electronic components that store electrical energy and release it when needed. They are commonly used in a wide range of electronic devices, including televisions, computers, and air conditioners. However, like any other electronic component, capacitors can sometimes fail and need to be replaced. In this article, we will discuss the different types of capacitors, how to test them, and how to replace them.

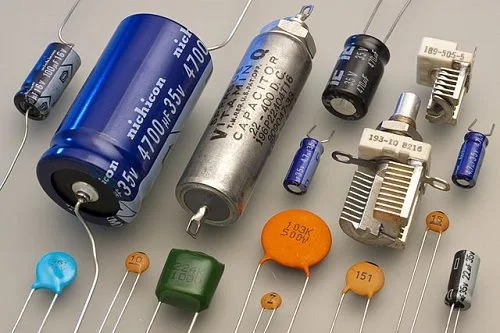

Types of Capacitors
There are several different types of capacitors, each with their own advantages and disadvantages. The most common types of capacitors include:
- Ceramic capacitors - These capacitors are small and inexpensive and are commonly used in high-frequency applications.
- Electrolytic capacitors - These capacitors are larger and more expensive than ceramic capacitors and are commonly used in power supply circuits.
- Tantalum capacitors - These capacitors are similar to electrolytic capacitors but have a higher tolerance for voltage.
- Film capacitors - These capacitors are made of a thin film of metal and are commonly used in high-precision circuits.
Testing Capacitors
If you suspect that a capacitor has failed, you can use a multimeter to test it. Here are the steps to follow:
- Turn off the power to the device and discharge any residual charge from the capacitor.
- Set your multimeter to measure capacitance.
- Connect the multimeter leads to the capacitor terminals.
- The multimeter will display the capacitance value. If the value is significantly lower than the rated capacitance value, the capacitor is likely faulty and needs to be replaced.
Replacing Capacitors
Replacing a faulty capacitor is a relatively simple process that can be done with a few basic tools. Here are the steps to follow:
- Turn off the power to the device and discharge any residual charge from the capacitor.
- Locate the faulty capacitor and carefully remove it from the circuit board.
- Take note of the polarity of the capacitor - the positive and negative leads are usually marked on the capacitor.
- Install the new capacitor, making sure that the polarity is correct.
- Solder the new capacitor in place.
- Turn on the power to the device and test it to make sure it is working correctly.
Capacitors are an important component in many electronic devices, and it is important to know how to test and replace them when necessary. By following the steps outlined in this article, you can ensure that your electronic devices are working properly and avoid costly repairs or replacements.
