Lexus CT 200h ABS Module DTCs: Comprehensive Guide to C1203, C1231, C1345, C1451

Lexus CT 200h ABS Module DTCs -1

Lexus CT 200h ABS Module DTCs

When it comes to maintaining the peak performance of your Lexus CT 200h, understanding Diagnostic Trouble Codes (DTCs) related to the Anti-lock Braking System (ABS) is crucial. In this detailed guide, we'll explore the common ABS module DTCs: C1203, C1231, C1345, and C1451. We'll cover their meanings, causes, symptoms, and the steps you can take to resolve these issues and keep your Lexus in top condition.
​

Understanding ABS Module DTCs
The ABS module is a critical component of your Lexus CT 200h, ensuring safe and effective braking under various conditions. When the ABS system detects a problem, it generates DTCs to help diagnose the issue.

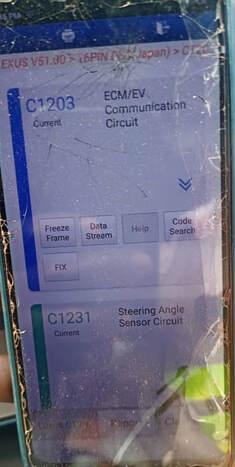

DTC C1203: Engine Control System Communication Circuit
Meaning:
This code indicates a communication issue between the ABS module and the Engine Control Module (ECM).
Causes:

• Faulty ECM or ABS module
• Damaged wiring or connectors
• Issues with the CAN bus system

Symptoms:

• ABS warning light illuminated
• Possible loss of ABS functionality
• Intermittent or no communication with the ECM

Solutions:

• Inspect and repair or replace damaged wiring and connectors
• Check the ECM and ABS module for faults and replace if necessary
• Perform a CAN bus system check

DTC C1231: Steering Angle Sensor Signal Malfunction
Meaning:
This code is triggered when there is a malfunction in the steering angle sensor signal.
Causes:

• Faulty steering angle sensor
• Misalignment of the steering angle sensor
• Issues with wiring or connectors

Symptoms:

• Stability control warning light on
• Difficulty in steering or loss of power steering assist
• ABS and traction control systems may be affected

Solutions:

• Calibrate or replace the steering angle sensor
• Inspect and repair or replace damaged wiring and connectors
• Ensure proper alignment of the steering angle sensor

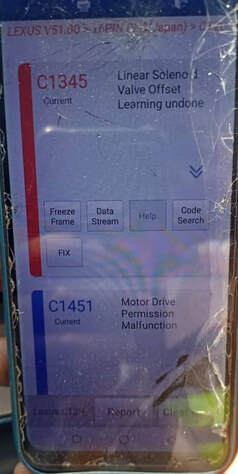

DTC C1345: Linear Solenoid Valve Offset Learning Undone
Meaning:
This code indicates that the learning procedure for the linear solenoid valve offset has not been completed.
Causes:

• Incomplete or incorrect solenoid valve learning process
• Faulty ABS actuator or solenoid valve
• Issues with wiring or connectors

Symptoms:

• ABS warning light illuminated
• Possible reduction in braking efficiency
• Inconsistent brake pedal feel

Solutions:

• Perform the solenoid valve offset learning procedure using a scan tool
• Inspect and repair or replace faulty ABS actuator or solenoid valve
• Check and repair or replace damaged wiring and connectors

DTC C1451: ABS Control System Malfunction
Meaning: This code signals a general malfunction within the ABS control system.
Causes:

• Faulty ABS module
• Damaged or corroded wiring and connectors
• Issues with other related components (e.g., wheel speed sensors)

Symptoms:

• ABS warning light on
• Loss of ABS functionality
• Decreased braking performance

Solutions:

• Diagnose and replace the faulty ABS module
• Inspect and repair or replace damaged wiring and connectors
• Check and replace other related components as needed

Maintaining Your Lexus CT 200h
Regular maintenance and prompt attention to ABS DTCs are essential for the longevity and safety of your Lexus CT 200h. Here are some tips to keep your vehicle in optimal condition:

• Regular Inspections: Routine checks of the braking system and related components can help prevent issues before they escalate.
• Professional Diagnostics: Utilize professional diagnostic tools to accurately identify and resolve DTCs.
• Quality Repairs: Use OEM parts and trusted repair services to ensure the reliability of your vehicle.

By staying informed about these common ABS module DTCs and addressing them promptly, you can ensure the safety and performance of your Lexus CT 200h. If you have any questions or need further assistance, don't hesitate to reach out to your local Lexus service center.
