Hyundai HMC ECU Delphi 39100-82000 Stalling Issue

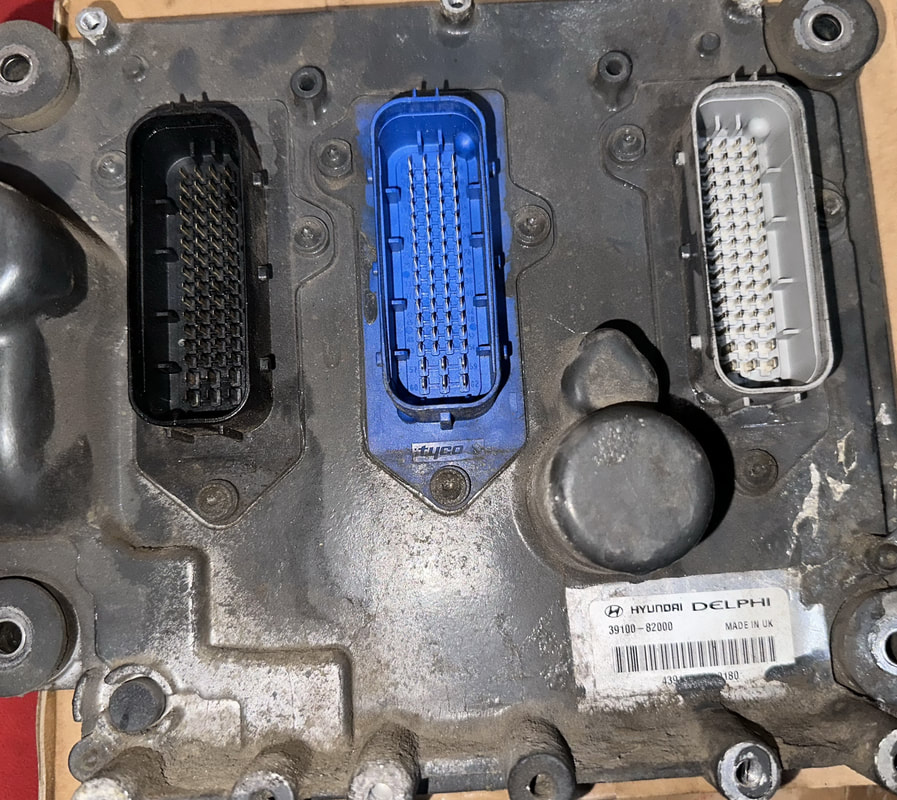

Hyundai HMC ECU Delphi 39100-82000
If you’ve just replaced your battery and your Hyundai starts but stalls shortly after, you’re not alone--this is a common issue, especially in models using the Delphi ECU 39100-82000 system. But don’t worry, you don’t need to guess.

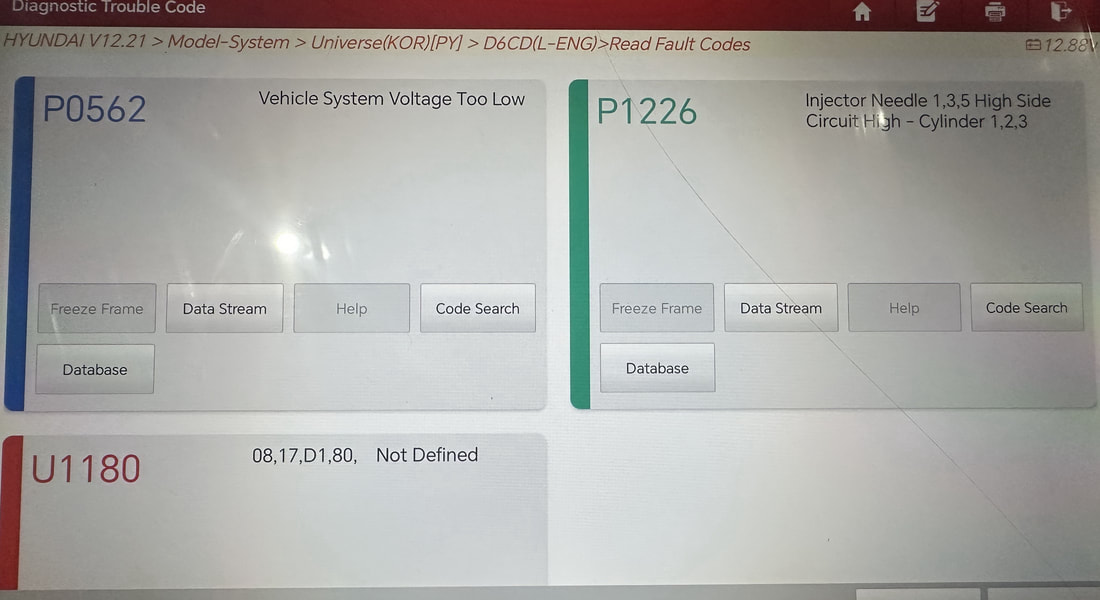

Common Fault Codes After Battery Replacement
When your Hyundai stalls after a new battery is installed, it often triggers the following DTCs (Diagnostic Trouble Codes):
What These Codes Really Mean
✅ P0562 – System Voltage Too Low
The ECU is detecting a drop in system voltage—usually under 11V. This often happens:
✅ P1226 – Injector Needle 1,3,5 High Side Circuit High
This code means the ECU detects abnormal voltage or open circuit on the injectors for cylinders 1, 3, and 5. Why?
✅ U1180 – CAN Bus Communication Error
After voltage disturbance, the ECU may lose communication with other control modules like the TCM, ABS, or BCM. This is often due to:
Step-by-Step Fix: Get Your Hyundai Running Again
This is how professional auto repair techs handle it:
1. Battery & Charging Check
Why Does This Happen After a Battery Change?
Most people overlook this: replacing a battery without a memory saver or without disconnecting the ECU properly can create sudden voltage spikes or drops. These voltage shifts confuse the Delphi ECU (39100-82000), causing erratic behavior and temporary loss of injector control or CAN communication.
Want to Learn ECU Diagnostics Like a Pro?
If you're serious about fixing automotive electronics the right way—or even starting a career in ECU repair--don’t rely on guesswork. Learn from the experts.
👉 Join the ECU Repair Course
🔗 Click here to enroll now
When your Hyundai stalls after a new battery is installed, it often triggers the following DTCs (Diagnostic Trouble Codes):
- P0562 – System Voltage Too Low
- P1226 – Injector Needle 1,3,5 High Side Circuit High
- U1180 – CAN Bus Communication Error
What These Codes Really Mean
✅ P0562 – System Voltage Too Low
The ECU is detecting a drop in system voltage—usually under 11V. This often happens:
- If the battery wasn’t fully charged during installation.
- If battery terminals or grounds weren’t tightened or cleaned properly.
- If the alternator is weak or not charging at full capacity.
✅ P1226 – Injector Needle 1,3,5 High Side Circuit High
This code means the ECU detects abnormal voltage or open circuit on the injectors for cylinders 1, 3, and 5. Why?
- A common 12V power feed to these injectors is missing.
- The injector relay or fuse may be faulty.
- The high-side driver circuit in the ECU could be affected by electrical surges from the battery replacement.
✅ U1180 – CAN Bus Communication Error
After voltage disturbance, the ECU may lose communication with other control modules like the TCM, ABS, or BCM. This is often due to:
- Temporary voltage brownouts during battery change.
- A ground wire not reconnected properly.
- A short in CAN lines due to pinched wires or a spike from a jump start.
Step-by-Step Fix: Get Your Hyundai Running Again
This is how professional auto repair techs handle it:
1. Battery & Charging Check
- Use a multimeter:
- Engine off: 12.6V or higher
- Engine running: 13.8–14.4V
- Check alternator function—replace if voltage doesn’t rise when engine is on.
- Clean both terminals with a wire brush.
- Torque battery clamps properly—loose terminals cause voltage drops.
- Check engine ground strap from block to chassis--corroded straps = ECU confusion.
- Find the injector fuse (often labeled INJ or EFI)—test continuity with a multimeter.
- Confirm injector relay clicks when ignition is ON.
- Check continuity between fuse and injectors for open high-side circuits.
- Disconnect ECU plugs and inspect for:
- Bent or oxidized pins
- Signs of water ingress or short circuits
- Reconnect and lock them securely.
- After all checks, clear the codes using a professional scanner.
- Start the engine and let it idle. If it stalls again, recheck high-side injector voltage or test the ECU on a bench.
Why Does This Happen After a Battery Change?
Most people overlook this: replacing a battery without a memory saver or without disconnecting the ECU properly can create sudden voltage spikes or drops. These voltage shifts confuse the Delphi ECU (39100-82000), causing erratic behavior and temporary loss of injector control or CAN communication.
Want to Learn ECU Diagnostics Like a Pro?
If you're serious about fixing automotive electronics the right way—or even starting a career in ECU repair--don’t rely on guesswork. Learn from the experts.
👉 Join the ECU Repair Course
🔗 Click here to enroll now
