How to Perform an Insulation Resistance Test on Hybrid Systems: A Complete Guide for Technicians

17/9/2024

2 Comments

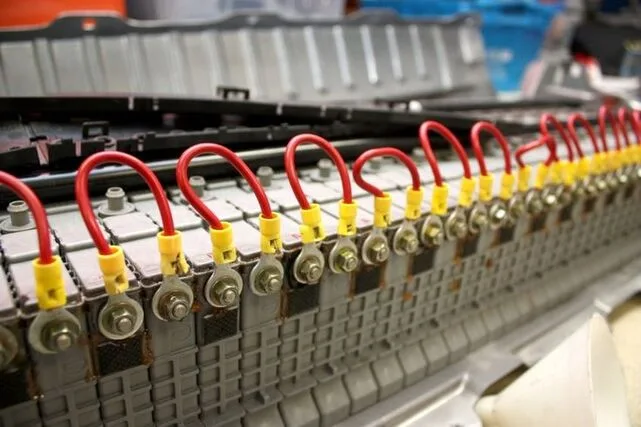

Insulation Resistance Test for Hybrid Systems
Hybrid vehicles are increasingly popular due to their fuel efficiency and reduced emissions. However, with their complex high-voltage electrical systems, proper maintenance is critical. One essential aspect is performing an insulation resistance test to ensure that the system’s insulation is intact and safe for operation. This guide will explain how to carry out the test, why it's important, and the technical aspects you need to know.
​
What Is an Insulation Resistance Test?
The insulation resistance test is a diagnostic procedure designed to check the insulation between electrical components in a hybrid system. This test helps identify if there is any leakage or deterioration in the insulation that could cause short circuits or expose parts of the vehicle to high voltage.

Why Is It Important for Hybrid Systems?
Hybrid systems use high-voltage batteries, typically ranging from 200V to 800V, which can be dangerous if not properly insulated. The insulation ensures that no electrical current escapes from the system, which could lead to performance issues or, in severe cases, electric shocks. Performing regular insulation resistance tests helps:
  • Prevent electrical failures
  • Ensure the safety of technicians and drivers
  • Maintain system efficiency

Equipment Needed for the Test
To perform an insulation resistance test, you’ll need specific tools, including:
  • Megohmmeter: A specialized meter that measures insulation resistance in ohms.
  • Insulation Resistance Tester (IRT): Provides readings by applying a controlled voltage.
  • Personal Protective Equipment (PPE): This includes high-voltage gloves, goggles, and insulating mats.

Step-by-Step Guide to Perform an Insulation Resistance Test on Hybrid Systems
  1. Preparation
    • Turn off the system: Ensure the hybrid system is turned off and disconnected from any power sources.
    • Check voltage: Verify there’s no residual voltage using a voltmeter to avoid potential hazards.
    • PPE: Wear appropriate personal protective equipment to safeguard yourself from electrical exposure.
  2. Set Up the Megohmmeter
    • Select a megohmmeter rated for the specific voltage of the hybrid system.
    • Connect the positive lead of the megohmmeter to the high-voltage conductor and the negative lead to the ground.
  3. Apply Voltage
    • Apply the test voltage from the megohmmeter. Commonly used test voltages are 500V, 1000V, or even higher, depending on the hybrid system’s specifications.
    • Measure insulation resistance. The reading should be above a specific threshold (often above 1 MΩ for most hybrid systems) to confirm adequate insulation.
  4. Analyze Results
    • Pass: If the resistance is above the minimum acceptable limit, the insulation is intact.
    • Fail: If the insulation resistance is below the threshold, it indicates potential degradation, and the components may need further inspection or replacement.
  5. Repeat Testing
    • Perform the insulation resistance test across all critical components, including the battery, inverter, and motor connections.
    • Document the results for future reference and maintenance schedules.

Common Issues and Solutions
  • Low Resistance Readings: This could indicate moisture in the insulation or physical damage. Inspect the wiring harness and insulation material, and consider replacing affected parts.
  • Fluctuating Readings: Inconsistent readings may be due to poor contact between the tester and the system’s terminals. Ensure proper connection and cleanliness of the contact points.

Safety Considerations
When working with high-voltage hybrid systems, safety is paramount. Always follow these guidelines:
  • Disconnect the battery before testing.
  • Use insulated tools and PPE at all times.
  • Ensure a controlled environment, away from flammable materials or liquids.

Performing an insulation resistance test on hybrid systems is crucial to ensure their safety and performance. Regular testing prevents insulation failures that could lead to costly repairs or dangerous situations. With the proper equipment and careful execution, technicians can easily integrate this test into routine hybrid system maintenance.
​

By following this guide, you’ll not only ensure the hybrid system’s longevity but also maintain safety for both the vehicle and its operators.

Remember: Maintaining hybrid systems goes beyond just mechanical work. Electrical diagnostics, like the insulation resistance test, are key to ensuring the reliability of modern vehicles.
