Hot Wire Air Mass Sensor in Automotive: Functions and Importance

27/10/2023

1 Comment


Hot Wire Air Mass Sensor in Automotive: Functions and Importance
If you're delving into the intricate world of automotive sensors, understanding the hot wire air mass sensor is essential. This sensor plays a crucial role in ensuring your vehicle runs smoothly and efficiently. In this guide, we'll explore the functions, features, and importance of the hot wire air mass sensor in the automotive niche.
​

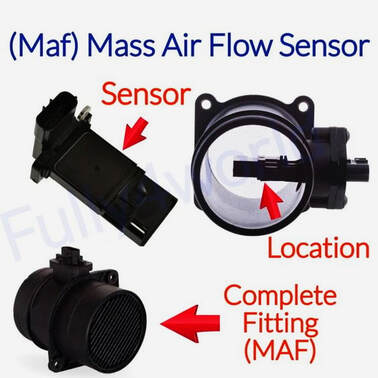

What is a Hot Wire Air Mass Sensor?
The hot wire air mass sensor is a variant of the air mass sensor used in vehicles. Unlike its counterpart, the hot film air mass sensor, the hot wire air mass sensor, specifically the Hitachi model, is attached to the clean air pipe after the intake silencer. This combined sensor is responsible for recording the actual air mass, regardless of air pressure, and relaying this data to the DDE control unit for various critical functions.

Functions of the Hot Wire Air Mass Sensor
The hot wire air mass sensor's primary functions include:
  1. Calculation of the Fuel Limit Quantity: This sensor plays a pivotal role in optimizing fuel injection by accurately measuring the air mass entering the engine.
  2. Exhaust Gas Recirculation Control: It contributes to managing exhaust gas recirculation, an essential aspect of emissions control and fuel efficiency.

Integrated Intake Air Temperature Sensor
Within the hot wire air mass sensor, you'll find an integrated intake air temperature sensor. This additional sensor measures the temperature of the intake air in front of the exhaust turbocharger, providing critical data for engine performance and efficiency.

Functional Description
The hot wire air mass sensor features an electrically heated platinum wire that extends into the airflow. The wire's temperature is carefully maintained, and as the air mass flows over it, it removes heat from the wire. The more significant the air mass flow, the more energy is required to maintain the platinum wire's temperature.

To ensure accuracy, a labyrinth structure ensures that only the actual air mass is captured, preventing the recording of backflows and pulsations. This design contributes to precise air mass measurements.

Technical Details and Pin Assignment
The air mass sensor is supplied with 12 V of supply voltage and ground by the DDE control unit. The signal returned by the air mass sensor is a square wave with specific characteristics, enabling the DDE control unit to calculate the air mass value accurately.
  • Supply Voltage: 13.4 to 13.6 V
  • Sensor Voltage: 4.9 to 5.1 V
  • Maximum Current Consumption: 15 mA
  • Frequency Range: 1 to 9.5 kHz
  • Intake Air Temperature Measuring Range: -40°C to 110°C
  • Temperature Range: -40°C to 120°C

Importance of Air Mass Sensor Adaptation
During operation, the air mass sensor may be exposed to various influences, such as contamination and aging. These factors can cause the sensor's characteristics to deviate from the target state, leading to performance issues or excessive emissions. To counteract this, the adaptation service for the hot-wire air mass sensor is crucial, especially after sensor replacement. This service resets saved correction factors to ensure optimal performance.

In the world of automotive sensors, the hot wire air mass sensor is a critical component for efficient engine operation, fuel management, and emissions control. Regular maintenance and adaptation are essential to keep your vehicle running smoothly.

For more in-depth automotive insights and services, we recommend exploring the
BMW Programming & Coding Course.


In the automotive niche, the hot wire air mass sensor is an unsung hero, silently ensuring your vehicle's engine operates at its best. Understanding its functions and the necessity of adaptation is essential for maintaining peak performance. Stay tuned for more automotive insights and tips.
