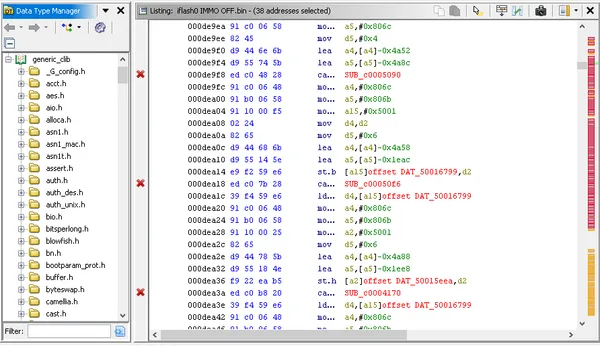

Ghidra – Powerful Reverse Engineering Course

Shop

Ghidra BMW MD1 MG1 IMMO SYSTEM

$3,560.00

Ghidra BMW MD1 MG1 IMMO SYSTEM

Shop

If you’re serious about ECU tuning and automotive engineering, understanding what’s really happening inside a Bosch ECU is essential. Modern TriCore-based ECUs aren’t just about fuel maps and boost tables — they are highly complex systems controlling torque, safety, diagnostics, and communication in real time.

The Ghidra TriCore ECU Reverse Engineering Course provides practical, step-by-step training to help tuners and engineers move from map editing to full ECU logic understanding.
Using real ECU files, you’ll learn to analyze, interpret, and safely modify ECU behavior.
​
For full advanced training, visit:
https://www.electronicrepairegypt.com/ghidra-advanced-course.html

​Why ECU Reverse Engineering Matters
ECU tuning without understanding the logic is guesswork. You might change a map, but you won’t know how limiters, torque models, or safety strategies affect the engine. Reverse engineering gives you:

• OEM-level insight into torque calculation
• Real understanding of sensors → calculation → output
• Knowledge of hidden limiters and protections
• Confidence to safely create custom features

With Ghidra, you can explore ECU software at the code and runtime level, not just the maps.

What Makes Ghidra Perfect for TriCore ECUs
Ghidra is a professional reverse engineering tool developed for analyzing complex binaries. For ECU analysis, it allows you to:

• Load ECU binaries correctly
• Disassemble TriCore machine code
• Decompile assembly to readable pseudocode
• Trace functions, execution paths, and variable usage
• Document ECU logic professionally

Using Ghidra, you gain full visibility into the internal workings of the ECU.

Understanding TriCore ECU Architecture
Before analyzing an ECU, understanding its structure is critical. Most Bosch TriCore ECUs include:

1. Program Memory – Executable instructions controlling ECU behavior
2. Calibration Memory – Maps, constants, and axis data
3. RAM – Runtime variables such as sensor inputs, torque calculations, and flags
4. Peripheral Memory – Hardware interfaces, timers, interrupts, and communication

Knowing this layout ensures you can distinguish code from data, a common challenge for beginners.

Setting Up Ghidra for ECU Analysis
Correct setup is the foundation of clean analysis. Key steps include:

• Create a new Ghidra project
• Import ECU binary or full dump
• Select TriCore processor
• Define program, calibration, and RAM segments
• Align addresses correctly
• Verify endianness and memory layout
• Check for clean disassembly and pseudocode

A proper setup prevents errors and ensures your analysis is readable and reliable.

Disassembly and Pseudocode Workflow
Reading raw assembly can be overwhelming, but patterns emerge with practice. Key points you’ll learn:

• Identifying functions, loops, and branches
• Understanding register usage
• Tracking execution paths
• Translating assembly into readable pseudocode
• Recognizing Bosch ECU compiler patterns

Ghidra makes this process efficient, allowing you to follow ECU logic visually and systematically.

Following ECU Execution Flow
Every ECU function follows a logic path:
Sensor Input → Filtering → Calculation → Limiter → Output
With Ghidra, you can trace:

• RPM processing
• Load and torque calculation
• Limiter and protection logic
• Sensor and actuator handling

Understanding this flow allows tuners to predict ECU behavior, rather than guessing.

Map and Strategy Analysis
Maps are important, but they don’t operate in isolation. Using Ghidra, you’ll learn to:

• Locate map usage in code
• Understand axis interpolation
• Identify modifiers, limiters, and hidden strategies
• Follow conditional map switching
• Distinguish models vs safety logic

This ensures safe and effective tuning.

Advanced Reverse Engineering Techniques
To work professionally, you’ll also master:

• Renaming functions for clarity
• Annotating code and documenting findings
• Building call trees and cross-references
• Identifying CAN routines and communication points
• Finding safe modification points for custom logic

This structured workflow works across multiple ECU types and software versions.

Practical Benefits
Learning ECU reverse engineering offers real advantages:

• Understand OEM torque and fuel strategies
• Verify tuning tool changes accurately
• Detect hidden limiters and safety mechanisms
• Build custom features or advanced strategies
• Reduce risk of ECU damage and improve calibration quality

The knowledge gained is directly applicable to professional ECU tuning.

BMW Members
A conceptual overview of MD1/MG1 immobilizer systems helps you:

• Understand ECU authentication flow
• See where immobilizer checks occur
• Learn legal, controlled lab research techniques

⚠️ Educational purposes only.

Who Should Take This Course

• Professional tuners seeking OEM-level insight
• Automotive engineers interested in ECU logic
• Calibration specialists wanting advanced skills
• Anyone aiming to master Bosch TriCore ECUs

Requirements: Windows PC, Ghidra installed, no extra tools required.

The Ghidra TriCore ECU Reverse Engineering Course transforms beginners into confident ECU analysts. By understanding ECU logic deeply, you can:

• Analyze software independently
• Verify behavior safely
• Apply knowledge across multiple ECUs
• Build smarter, safer calibration strategies

This course is the foundation for professional-level ECU analysis and advanced automotive tuning.
