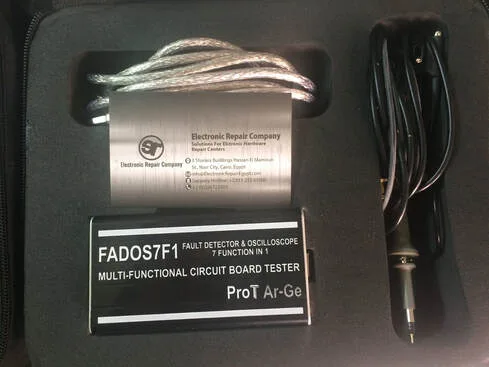

Electronic Repair Blog FADOS7F1 18V The Ultimate Fault Detector and Oscilloscope 7 Functions in 1 Device FADOS7F1 18V Fault Detector and Oscilloscope: Unlocking 7 Functions in 1 Device
Are you in search of a versatile tool that combines fault detection, oscilloscope functionality, and more, all in one compact device? Look no further than the FADOS7F1 18V Fault Detector and Oscilloscope. With its comprehensive set of features, this remarkable device offers a holistic solution for troubleshooting electronic circuits. Let's delve into the unique capabilities of the FADOS7F1 and how it can revolutionize your circuit analysis. 1. Dual-Channel Fault Detection by V/T Tester (Analog Signature Analyzer - Troubleshooting) The FADOS7F1 enables fault detection by directly comparing the current-voltage characteristics (signatures) of a working circuit board with those of a faulty one, all without applying power to the unit under test. This dual-channel fault detection feature helps pinpoint issues accurately, making troubleshooting more efficient. 2. Fault Detection by Comparison with Stored Signatures (Memory) One of the standout features of the FADOS7F1 is its ability to save signatures of functioning circuit boards. These stored signatures can then be used as references when troubleshooting faulty boards in the future. The device even provides a convenient crosshair mark to indicate the specific point to touch on the image of the board, simplifying the identification of problem areas. 3. Equivalent Circuit Diagram Display With the FADOS7F1, you can visualize an equivalent circuit diagram that corresponds to the characteristics observed at the touched point. This invaluable feature aids in understanding the underlying circuitry, allowing for a deeper analysis of the circuit's behavior and potential issues. 4. Display Values of Resistor, Capacitor, and Diode Threshold Say goodbye to manual calculations! The FADOS7F1 displays the calculated values of resistance, capacitors, and diode threshold voltages based on the conditions at the contacted node. This real-time information provides immediate insights into the circuit's health and can expedite the troubleshooting process. 5. Dual-Channel Digital PC Oscilloscope In addition to its fault detection capabilities, the FADOS7F1 serves as a dual-channel digital PC oscilloscope. This means you can leverage the device's oscilloscope functionality to analyze waveforms, measure voltages and frequencies, and visualize signals accurately. Enjoy the convenience of multiple tools consolidated into a single device. 6. 0.2... 25KHz Square Wave Signal Output Need a square wave generator? The FADOS7F1 has got you covered. With a frequency range from 0.2Hz to 25KHz, Channel 2 of this device can generate square wave signals. And remember, while Channel 2 handles the square wave generation, Channel 1 remains available for oscilloscope measurements, further enhancing the versatility of the FADOS7F1. 7. Analogue Voltage Output (2.5V Sensitivity) Harness the power of analog voltage output with the FADOS7F1. Channel 2 can be utilized as an analog DC output, offering a range of -10V to +10V. This feature allows you to interface with other analog devices seamlessly. Meanwhile, Channel 1 remains available for oscilloscope functionality, ensuring that you have all the tools you need at your disposal. These features mentioned above are just a glimpse of the unique capabilities of the FADOS7F1 18V Fault Detector and Oscilloscope. By combining seven essential functions into a single device, this tool streamlines your circuit analysis process and empowers you to troubleshoot with precision. Whether you're a seasoned electronics professional or an enthusiastic hobbyist, the FADOS7F1 offers unparalleled convenience and efficiency. Say goodbye to juggling multiple devices and embrace the simplicity and power of this all-in-one solution. Invest in the FADOS7F1 18V Fault Detector and Oscilloscope today and unlock a world of possibilities in circuit troubleshooting. Experience the difference of a device designed to enhance your productivity and deliver accurate results. Order the FADOS7F1 now and take your circuit analysis to the next level. Trust in its unique features, exceptional performance, and the convenience of having seven functions consolidated into a single device. Discover the future of fault detection and oscilloscope capabilities with the FADOS7F1. |
