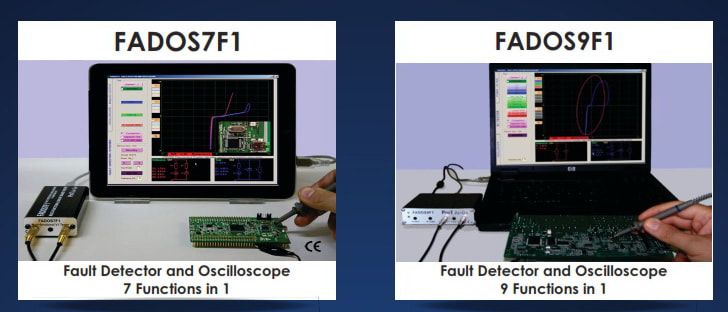

Electronic Repair BlogIn the realm of electronic repairs and diagnostics, the FAult Detector and OScilloscope 9 Functions in 1 (FAutos9F1) stands as a game-changing device. Packed with a comprehensive range of capabilities, this innovative tool revolutionizes fault detection, troubleshooting, and oscilloscope functionalities. Let's delve into the remarkable features that make FADOS9F1 an indispensable asset for professionals and enthusiasts alike.
Dual-Channel Fault Detection by V/T Tester (Analog Signature Analyzer - Trouble Shooting): By employing direct comparison of the current-voltage characteristics (signatures), FADOS9F1 enables fault detection without applying power to the unit under test. This feature allows for precise identification of faulty circuit boards, eliminating the need for power-related risks. Fault Detection by Comparison with Stored Signatures (Memory): FAutos9F1 allows the saving of signatures from a functioning board, creating a valuable reference for troubleshooting faulty boards in the future. The device visually indicates the point to touch with a crosshair mark on the board's image, streamlining the diagnostic process. Equivalent Circuit Diagram: When a point is touched on the circuit board, FADOS9F1 displays an equivalent circuit diagram that corresponds to the characteristics of that specific point. This function enhances understanding and analysis, aiding in targeted repairs. Display Values of Resistor, Capacitor, Inductor, and Diode Threshold: With FADOS9F1, users can effortlessly view the calculated values of resistance, capacitors, inductors, and diode threshold voltages for the conditions at the contacted node. This real-time data empowers technicians to make informed decisions during troubleshooting. Dual-Channel Digital PC Oscilloscope: When the situation demands it, FADOS9F1 seamlessly transforms into a dual-channel digital PC oscilloscope. This versatility consolidates multiple functionalities into a single device, optimizing efficiency and reducing the need for additional equipment. 0.2... 25KHz Square Wave Signal Output: Equipped with a built-in square wave generator, Channel 2 of FADOS9F1 produces a precise square wave signal within the frequency range of 0.2 to 25KHz. Additionally, Channel 1 can be utilized as an oscilloscope, further expanding the device's capabilities. Analog Voltage Output (2.5mV Sensitivity): FADOS9F1 leverages Channel 2 as an Analog DC output, providing a sensitivity of 2.5mV. With Channel 1 functioning as an oscilloscope, this configuration allows for precise analog voltage measurements and analysis. Programmable Integrated DC Power Supply for Creating Power DC-VI Graph: FADOS9F1 introduces a programmable integrated DC power supply that facilitates the creation of power DC voltage-current (VI) graphs. Users can adjust the output voltage within the range of 0 to 16 volts, with an output current of 20 to 1500 mA. This feature empowers technicians to supply energy to circuit boards while observing and analyzing their voltage-current characteristics. Non-Touched IR Temperature Sensor: Setting itself apart from its predecessors, FADOS9F1 introduces a new and unique feature—a non-touched infrared (IR) temperature sensor. This cutting-edge sensor detects heated components without physical contact, enabling users to draw heat maps of the circuit board. This capability plays a crucial role in identifying potential overheating issues and optimizing thermal management in electronic systems. These nine functions integrated into a single device make FADOS9F1 a game-changer in the realm of fault detection and oscilloscope capabilities. Whether you are an experienced technician or an electronics enthusiast, this powerful tool offers unparalleled efficiency, precision, and versatility in troubleshooting and repairs. To get your hands on the FAult Detector and OScilloscope 9 Functions in 1 (FADOS9F1), visit Electronic Repair Egypt's official website. Order now and unlock a new level of excellence in electronic diagnostics and repairs. Order Now from Electronic Repair Egypt: https://www.electronicrepairegypt.com/store/p1241/FADOS9F1_Tester.html |
