BMW M5 F90 DME MG1CS201 Faults Explained | Immobiliser, Power & Battery Errors Fix Guide
The BMW M5 F90 is one of the most advanced performance sedans ever built, combining extreme power with complex electronics and intelligent control systems. At the heart of this system sits the DME MG1CS201 engine control unit, responsible for managing ignition, fuel, power delivery, immobiliser communication, and full engine protection strategies.
When faults appear in this system, the car doesn’t just throw simple error codes—it can refuse to start, limit power, or trigger multiple drivetrain warnings at once.
When faults appear in this system, the car doesn’t just throw simple error codes—it can refuse to start, limit power, or trigger multiple drivetrain warnings at once.
The BMW M5 F90 uses a highly advanced Bosch engine management unit known as MG1CS201 DME.
This ECU is responsible for:
Full List of Reported Fault Codes (Real Diagnostic Case)
Below are the fault codes typically stored in the MG1CS201 DME:
Root Cause Analysis – What These Faults REALLY Mean
1. Immobiliser (EWS) Synchronization Failure
Faults:
In simple terms, the DME is not receiving a valid “OK to start” signal from the immobiliser system.
Common causes:
2. Battery & Power Management Issues (IBS System)
Faults:
When readings become implausible, the DME activates protection mode.
Real causes include:
3. DME Internal Fault (MG1CS201 Memory or Processor Issue)
Fault:
It usually indicates:
4. Power Limitation & Engine Protection Mode
Faults:
This happens when:
5. Communication Breakdown (CAN Network Errors)
Faults:
Real Diagnostic Strategy (How Experts Approach It)
Fixing these issues is not about clearing codes. A structured workflow is essential:
Step 1 – Voltage Stability Check
Why These Faults Often Appear Together
The BMW M5 F90 is designed with a layered protection system.
That means one failure can trigger a chain reaction:
Battery issue → CAN errors → immobiliser mismatch → engine start blocked → power limitation
This is why many owners get confused seeing 8–10 fault codes at once. The root cause is often only ONE or TWO real issues.
Professional Repair Solutions
Depending on the root cause, solutions may include:
Electrical Repairs:
Preventing Future DME Failures
To avoid recurring issues:
When to Seek Professional BMW ECU Service
If your vehicle shows:
You can check professional BMW ECU solutions here:
BMW Services
FAQ – BMW M5 F90 DME MG1CS201 Faults
What does 1B2001 mean on BMW M5 F90?
It indicates that the electronic immobiliser is blocking engine start due to missing or invalid authorization data.
Can battery issues cause DME faults?
Yes. Low voltage or faulty IBS sensors can trigger multiple DME and communication errors.
Is DME internal fault serious?
Yes. It can indicate memory corruption or ECU hardware failure and should be diagnosed professionally.
Why does BMW show many fault codes at once?
Because one core issue can affect CAN communication, immobiliser sync, and power management simultaneously.
Can MG1CS201 ECU be repaired?
Yes, in many cases it can be repaired, reprogrammed, or cloned depending on the damage level.
This ECU is responsible for:
- Engine start authorization
- Torque calculation and power delivery
- Immobiliser (EWS/CAS/BDC synchronization)
- Battery and energy management coordination
- CAN communication with DSC, gearbox, and gateway modules
- Safety shutdown in case of abnormal signals

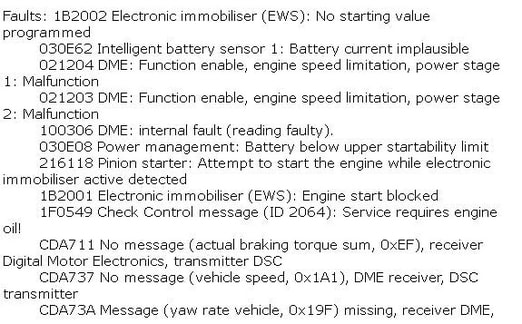

Full List of Reported Fault Codes (Real Diagnostic Case)
Below are the fault codes typically stored in the MG1CS201 DME:
- 1B2002 – Electronic immobiliser (EWS): No starting value programmed
- 1B2001 – Electronic immobiliser (EWS): Engine start blocked
- 216118 – Pinion starter: Start attempt while immobiliser active
- 030E62 – Intelligent Battery Sensor (IBS): Battery current implausible
- 030E08 – Power management: Battery below startability threshold
- 021204 – DME power limitation (Power stage 1 malfunction)
- 021203 – DME power limitation (Power stage 2 malfunction)
- 100306 – DME internal fault (reading faulty)
- CDA711 – Missing DSC torque message
- CDA737 – Vehicle speed signal missing (DSC to DME)
- CDA73A – Yaw rate signal missing (DSC communication error)
- 1F0549 – Service reminder: Engine oil service required
Root Cause Analysis – What These Faults REALLY Mean
1. Immobiliser (EWS) Synchronization Failure
Faults:
- 1B2001
- 1B2002
- 216118
In simple terms, the DME is not receiving a valid “OK to start” signal from the immobiliser system.
Common causes:
- CAS/BDC-DME sync lost
- ECU replacement without programming
- Corrupted ISN data
- Voltage drop during programming
- Wrong donor ECU installed
2. Battery & Power Management Issues (IBS System)
Faults:
- 030E62
- 030E08
When readings become implausible, the DME activates protection mode.
Real causes include:
- Weak or aging battery
- IBS sensor failure on negative terminal
- Poor grounding points
- Voltage instability during start
- Aftermarket battery installed without registration
3. DME Internal Fault (MG1CS201 Memory or Processor Issue)
Fault:
- 100306
It usually indicates:
- Corrupted flash memory
- Software mismatch
- Failed programming attempt
- Water or heat damage inside ECU
- Hardware degradation of processor circuits
4. Power Limitation & Engine Protection Mode
Faults:
- 021203
- 021204
This happens when:
- Engine safety thresholds are exceeded
- Torque calculation mismatch occurs
- ECU detects unreliable sensor data
- Lose acceleration
- Enter limp mode
- Limit RPM
- Disable boost pressure
5. Communication Breakdown (CAN Network Errors)
Faults:
- CDA711
- CDA737
- CDA73A
- DME (engine ECU)
- DSC (stability control module)
- Transmission control module
- CAN wiring fault
- Voltage drop in network
- DSC module malfunction
- Corrupted gateway communication
- ECU wake-up failure
Real Diagnostic Strategy (How Experts Approach It)
Fixing these issues is not about clearing codes. A structured workflow is essential:
Step 1 – Voltage Stability Check
- Battery load test
- IBS live data review
- Ground resistance measurement
- Check CAN High / Low integrity
- Verify DSC and DME communication flow
- ISN comparison between CAS/BDC and DME
- Synchronization validation
- Read/write verification
- Memory corruption analysis
- Software version matching
- Starter activation
- Fuel injection authorization
- Torque request validation
Why These Faults Often Appear Together
The BMW M5 F90 is designed with a layered protection system.
That means one failure can trigger a chain reaction:
Battery issue → CAN errors → immobiliser mismatch → engine start blocked → power limitation
This is why many owners get confused seeing 8–10 fault codes at once. The root cause is often only ONE or TWO real issues.
Professional Repair Solutions
Depending on the root cause, solutions may include:
Electrical Repairs:
- Battery replacement and registration
- IBS sensor replacement
- Ground point restoration
- DME programming and reflash
- CAS/BDC-DME synchronization
- ISN alignment and correction
- EEPROM repair
- Flash memory recovery
- ECU cloning or virginization
- Hardware-level DME repair
Preventing Future DME Failures
To avoid recurring issues:
- Always register new battery after replacement
- Avoid jump-starting with unstable voltage
- Keep ECU software updated
- Ensure proper grounding in engine bay
- Avoid incorrect ECU swaps without cloning tools
When to Seek Professional BMW ECU Service
If your vehicle shows:
- No-start condition
- Multiple CAN communication faults
- Immobiliser active errors
- DME internal fault codes
You can check professional BMW ECU solutions here:
BMW Services
FAQ – BMW M5 F90 DME MG1CS201 Faults
What does 1B2001 mean on BMW M5 F90?
It indicates that the electronic immobiliser is blocking engine start due to missing or invalid authorization data.
Can battery issues cause DME faults?
Yes. Low voltage or faulty IBS sensors can trigger multiple DME and communication errors.
Is DME internal fault serious?
Yes. It can indicate memory corruption or ECU hardware failure and should be diagnosed professionally.
Why does BMW show many fault codes at once?
Because one core issue can affect CAN communication, immobiliser sync, and power management simultaneously.
Can MG1CS201 ECU be repaired?
Yes, in many cases it can be repaired, reprogrammed, or cloned depending on the damage level.
