BMW Level Control System Malfunction: Causes, Symptoms, and Troubleshooting

BMW Level Control System Malfunction

The Level Control System in BMWs is crucial for maintaining proper ride height and vehicle stability, especially in models equipped with air suspension. However, high mileage and wear can lead to malfunctions. This article explores the common causes, symptoms, and solutions for a Level Control System Malfunction in BMWs, ensuring your vehicle remains safe and comfortable to drive

Common BMW Models Affected
Several BMW models, particularly those with air suspension systems like the BMW X5 (E70), E66, E60, 530d, and 525, frequently encounter Level Control System issues. These problems often arise in vehicles with higher mileage due to the wear and tear on components.

Symptoms of Level Control System Malfunction
Recognizing the signs of a malfunctioning level control system is essential for timely intervention. Common symptoms include:

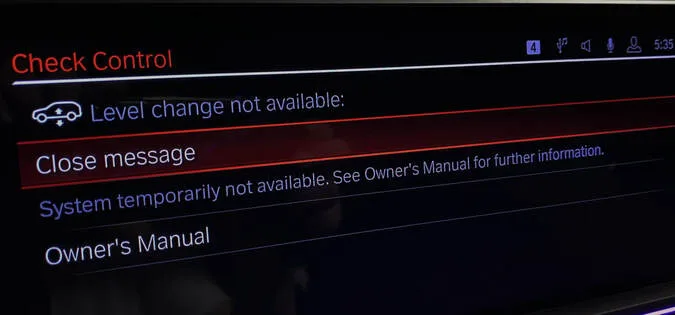

• Dashboard Warning Light: A yellow car icon with arrows.
• Audible Hissing: Indicative of air escaping from the suspension.
• Non-Engaging Compressor: The air compressor fails to activate.
• Sagging Rear Suspension: Visible lowering of the vehicle's rear.
• Extended Compressor Operation: The air compressor runs longer than usual.
• Rough Ride Quality: The vehicle's ride becomes noticeably harsh.
• Chassis Stabilization Errors: Alerts like "Chassis Stabilization Malfunction!".
• Intermittent Warnings: Suspension warnings appearing during uneven road conditions.

Causes of Level Control System Malfunction
Several issues can cause the Level Control System to malfunction:
1. Faulty Rear Height Level Sensor
The rear height level sensors, located in the wheel wells, monitor and maintain the ride height. These sensors or their connections can fail, especially in models like the BMW X5, where the rear links may detach from the ball joint.

2. Footwell Module (FRM) Failure
A malfunctioning Footwell Module (FRM) can trigger the Level Control System warning. Checking for software updates or recalls from your BMW dealer might resolve this issue.

3. Suspension Air Bags
The air suspension springs can develop cracks, leading to air leaks. If your vehicle lowers after being parked and rises upon starting, it indicates a potential air spring or supply line leak.

4. Air Suspension Compressor Issues
The air suspension compressor, located under the trunk floor, can fail over time. A faulty compressor may prevent the vehicle from maintaining the correct ride height.
​
5. Blown Fuse
A blown fuse in the air suspension circuit can also cause the system to malfunction. Inspect the relevant fuses, typically found in the fuse boxes inside the vehicle and in the engine bay or trunk area.

6. Damaged Connectors
Corroded or damaged wires and connectors to the rear level sensors can interrupt the system. Inspecting and testing these connections can help identify the issue.

Troubleshooting and Solutions
Addressing a Level Control System Malfunction involves several diagnostic and repair steps:

1. Check and Replace Rear Links/Sensors: Reattach or replace faulty links and sensors.
2. Inspect and Repair Footwell Module: Contact your BMW dealer for potential updates or recalls.
3. Examine and Replace Air Bags: Replace damaged air suspension springs to prevent compressor overuse.
4. Test and Replace Air Suspension Compressor: If the compressor is faulty, replacing it can restore normal function.
5. Inspect and Replace Fuses: Check and replace blown fuses in the relevant circuits.
6. Repair Damaged Wires/Connectors: Fix or replace any corroded or broken connections.

The Level Control System Malfunction in BMWs is a common issue, particularly in models with high mileage. By understanding the causes and symptoms, and following the troubleshooting steps outlined, you can effectively address and resolve these issues. Regular maintenance and timely repairs will ensure your BMW remains safe, comfortable, and reliable on the road.
