Here’s a detailed, step-by-step guide from an expert perspective, focusing on both technical accuracy and practical workflow.
Common DTCs associated with this issue:
- 112404 – Injector Cylinder 4, activation: Short to B+
- 112104 – Injector Cylinder 1, activation: Short to B+
Step 1: Safety FirstBefore touching injectors or the DME:
- Disconnect the battery negative terminal.
- Work on a cold engine.
- Use a multimeter for safe measurement.
Step 2: Inspect Wiring and ConnectorsStart with the obvious: visual inspection.
- Check harness insulation for chafing, melted sections, or pin corrosion.
- Focus on cylinders 1 and 4.
- Damaged wiring is the most common culprit for Short-to-B+ faults.
Step 3: Test Injector Coils
- Disconnect the injectors from the DME.
- Measure resistance across each injector:
- Typical petrol injector: 12–16 Ω
- 0 Ω → shorted coil → replace the injector
- Open circuit → injector broken internally
Step 4: Check Wiring from DME to Injectors
- With injectors disconnected:
- Test for continuity from DME output pin to +12V → should be open.
- Continuity indicates wiring short to battery → trace and repair.
- Also check for shorts to ground.

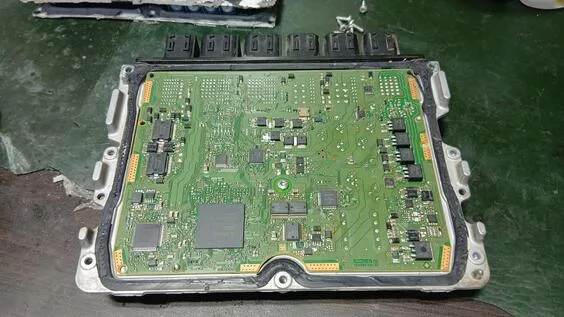

Step 5: Diagnose DME Output DriverIf injectors and wiring are confirmed good:
- Measure DME output pins using a resistive dummy load (never direct 12V).
- Normal operation: pulsed signal to the low-side switch.
- If output is stuck at 12V → DME driver MOSFET blown → DME repair or replacement required.
Step 6: Clear DTCs and Test
After repairing or replacing faulty components:
- Clear DTCs using ISTA/D .
- Test engine start and idle.
- Confirm injectors fire correctly and DTCs do not return.
