BMW Front Electronic Module (FEM): The Ultimate Guide to its Functions
In the world of automotive technology, innovation never stands still. BMW's Front Electronic Module (FEM) is a testament to this fact. The FEM represents a new generation of control units, surpassing its predecessors in both functionality and versatility.
What is the BMW Front Electronic Module (FEM)?
The Front Electronic Module is more than just a control unit; it's the central nervous system of your vehicle's electrical functions. Designed with a modular approach, the FEM can seamlessly integrate into all BMW series, making it a pivotal component in your car's control network.
Key Functions of the FEM:
Integration Highlights:
Central Gateway Module (ZGM):
The Central Gateway Module (ZGM) is not just a part of the FEM; it's an independent control unit within it. It streamlines data transmission across various bus systems, reducing the need for multiple control units and simplifying wiring harnesses.
Physical Location and Connections:

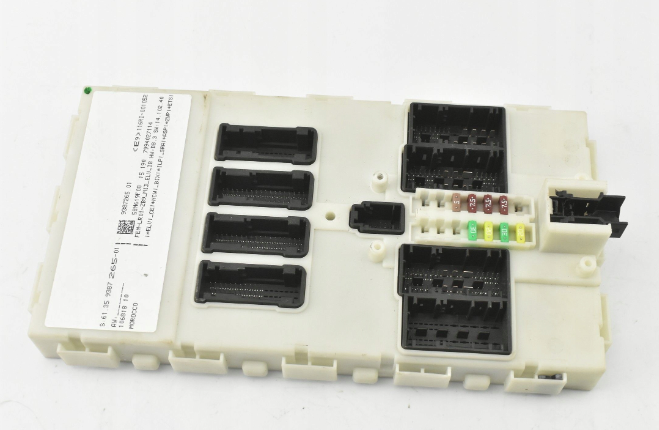

The FEM is strategically positioned in the A-pillar of the passenger footwell, managing all functions in the vehicle's front section. It's connected to the vehicle via nine plug connections, each with distinct color coding to prevent inadvertent misconnections.
Fuses and Consumer Units:
Within the FEM's fuse block, you'll find fuses for essential consumer units, including central locking drives, outside door handle electronics, power-train of the power window regulators, light operating facilities, rear electronic module, and fanfare.
System Functions of the FEM:
The FEM plays a pivotal role in numerous functions, including gateway control, terminal control, central locking system, electronic immobilizer, alarm system, comfort access, contact-free tailgate opening, steering column adjustment, power window regulation, slide/tilt sunroof operation, exterior and interior lighting, windshield wipers and washers, heating and climate control, electrical exterior mirrors, electrically adjustable seats, periphery functions, vehicle settings, and Check Control.
System Network:
The FEM acts as both transmitter and receiver in the system network, efficiently routing signals to the relevant receivers and outputs.
The BMW Front Electronic Module (FEM) is a remarkable advancement in automotive technology. It simplifies your vehicle's control units, reduces wiring complexity, and enhances component networking, making it an essential part of your BMW's electrical system.
For further exploration of BMW's cutting-edge technology, consider our
BMW Coding & Programming Course.
Discover how the FEM can optimize your BMW's performance and functionality, setting new standards in automotive excellence.
The Front Electronic Module is more than just a control unit; it's the central nervous system of your vehicle's electrical functions. Designed with a modular approach, the FEM can seamlessly integrate into all BMW series, making it a pivotal component in your car's control network.
Key Functions of the FEM:
- Gateway Control: The FEM serves as a gateway for other control units, streamlining communication and improving component networking.
- Integration of Control Units: The FEM combines the functions of various control units, including the Footwell Module (FRM), Car Access System (CAS), Junction Box Electronics (JBE), and even the Central Gateway Module (ZGM).
Integration Highlights:
- Car Access System (CAS): Functions like terminal control, electronic immobilizer, comfort access, electric steering lock, and central locking system are seamlessly integrated within the FEM.
- Junction Box Electronics (JBE): The FEM takes charge of power window regulation, wash/wipe systems, washer jet heating, climate control, seat heating, mirror heating, automatic air recirculation control, and the rain-light-solar-condensation sensor.
- Footwell Module (FRM): Exterior lighting, brake lights, interior lighting, and exterior mirrors all fall under the FEM's control.
Central Gateway Module (ZGM):
The Central Gateway Module (ZGM) is not just a part of the FEM; it's an independent control unit within it. It streamlines data transmission across various bus systems, reducing the need for multiple control units and simplifying wiring harnesses.
Physical Location and Connections:
The FEM is strategically positioned in the A-pillar of the passenger footwell, managing all functions in the vehicle's front section. It's connected to the vehicle via nine plug connections, each with distinct color coding to prevent inadvertent misconnections.
Fuses and Consumer Units:
Within the FEM's fuse block, you'll find fuses for essential consumer units, including central locking drives, outside door handle electronics, power-train of the power window regulators, light operating facilities, rear electronic module, and fanfare.
System Functions of the FEM:
The FEM plays a pivotal role in numerous functions, including gateway control, terminal control, central locking system, electronic immobilizer, alarm system, comfort access, contact-free tailgate opening, steering column adjustment, power window regulation, slide/tilt sunroof operation, exterior and interior lighting, windshield wipers and washers, heating and climate control, electrical exterior mirrors, electrically adjustable seats, periphery functions, vehicle settings, and Check Control.
System Network:
The FEM acts as both transmitter and receiver in the system network, efficiently routing signals to the relevant receivers and outputs.
The BMW Front Electronic Module (FEM) is a remarkable advancement in automotive technology. It simplifies your vehicle's control units, reduces wiring complexity, and enhances component networking, making it an essential part of your BMW's electrical system.
For further exploration of BMW's cutting-edge technology, consider our
BMW Coding & Programming Course.
Discover how the FEM can optimize your BMW's performance and functionality, setting new standards in automotive excellence.
