BMW Fault Code CF2C21 & 4209A4 Explained: Crankshaft Signal & Transmission Cooler Issues

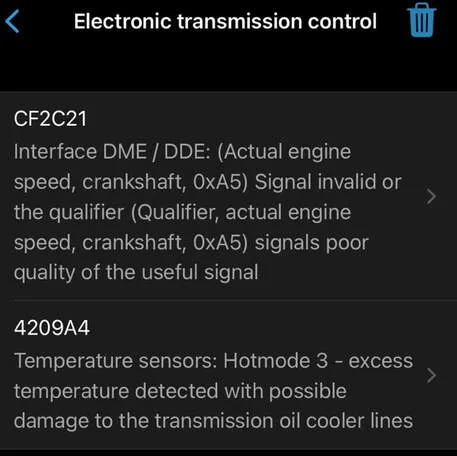

If you’ve run diagnostics on a BMW and stumbled upon DTC CF2C21 or 4209A4, you’re likely dealing with two distinct—but critical—issues: a crankshaft signal communication fault, and a possible high-temperature condition affecting the transmission oil cooler.
Let’s break these codes down, understand what causes them, and get into real-world diagnostics and repair steps that BMW technicians and enthusiasts can trust.
Let’s break these codes down, understand what causes them, and get into real-world diagnostics and repair steps that BMW technicians and enthusiasts can trust.
CF2C21 – Crankshaft Signal: Invalid or Poor Quality
This code points to a communication fault in the engine speed signal (ID 0xA5) transmitted via the DME (Digital Motor Electronics) or DDE (Diesel variant). This isn’t just a simple “sensor error” — it’s a sign that something is interfering with the crankshaft signal’s integrity.
What’s Actually Happening?
The DME expects a precise and consistent signal from the crankshaft position sensor. If the signal is:
Likely Causes:
Diagnostic Steps:
Fixes:
4209A4 – Transmission Oil Cooler Temperature: Hot Operation Warning
This code indicates a thermal stress condition in the transmission system — more specifically, the system has detected “Hot Operation 3”, which is the most severe warning stage before potential cooler or line damage.
⚠️ What Triggers It?When the transmission temperature exceeds safe operating limits — often during towing, spirited driving, or in hot climates — the TCU (Transmission Control Unit) logs this code to prevent mechanical damage.
Possible Causes:
What to Check:
Common Fixes:
Want to Master BMW Diagnostics?
Diagnosing these codes isn’t always plug-and-play — and BMWs are getting smarter (and more complex) every year. That’s why professional training can make all the difference.
👉 Join our BMW Full Training Course and get access to advanced diagnostics, real-world repair scenarios, and hands-on guidance from industry experts:
🔗 Join BMW Course Account
This code points to a communication fault in the engine speed signal (ID 0xA5) transmitted via the DME (Digital Motor Electronics) or DDE (Diesel variant). This isn’t just a simple “sensor error” — it’s a sign that something is interfering with the crankshaft signal’s integrity.
What’s Actually Happening?
The DME expects a precise and consistent signal from the crankshaft position sensor. If the signal is:
- Corrupted
- Intermittent
- Or not received at all...
Likely Causes:
- Failing crankshaft position sensor
- Broken or corroded wiring/connectors
- Grounding issues
- Signal interference in the CAN bus
- Early signs of a failing DME unit
Diagnostic Steps:
- Scan Live Data: Use ISTA+ or a compatible scanner. Check RPM signal consistency during cranking and idle.
- Scope the Signal: Oscilloscope test on the crankshaft sensor line will reveal noise or signal dropout.
- Check Resistance & Voltage: Ensure proper power supply and continuity on sensor lines.
- Inspect Wiring: Look for oil contamination, sharp bends, or chafing near the bellhousing area.
Fixes:
- Replace crankshaft sensor with OE or high-quality OEM part.
- Clean and secure all related connectors.
- Repair or shield wiring harness if exposed to heat or abrasion.
4209A4 – Transmission Oil Cooler Temperature: Hot Operation Warning
This code indicates a thermal stress condition in the transmission system — more specifically, the system has detected “Hot Operation 3”, which is the most severe warning stage before potential cooler or line damage.
⚠️ What Triggers It?When the transmission temperature exceeds safe operating limits — often during towing, spirited driving, or in hot climates — the TCU (Transmission Control Unit) logs this code to prevent mechanical damage.
Possible Causes:
- Low or aged transmission fluid
- Blocked transmission oil cooler
- Faulty or poorly circulating oil pump
- Failing or misreporting transmission temperature sensor
- Debris or sludging in cooler lines
What to Check:
- Read Transmission Fluid Temp in real-time using a BMW scan tool.
- Physically inspect cooler lines and connections — look for signs of leaks, kinks, or damage.
- Flush the transmission if fluid appears burnt or contaminated.
- Test oil circulation through the cooler using pressure or flow testing methods.
Common Fixes:
- Replace cooler or blocked cooler lines.
- Change transmission oil and filter (only with OE fluid types).
- Address any airlock or pump priming issues in the fluid circuit.
- Replace the temperature sensor if its data is inconsistent across driving conditions.
Want to Master BMW Diagnostics?
Diagnosing these codes isn’t always plug-and-play — and BMWs are getting smarter (and more complex) every year. That’s why professional training can make all the difference.
👉 Join our BMW Full Training Course and get access to advanced diagnostics, real-world repair scenarios, and hands-on guidance from industry experts:
🔗 Join BMW Course Account
