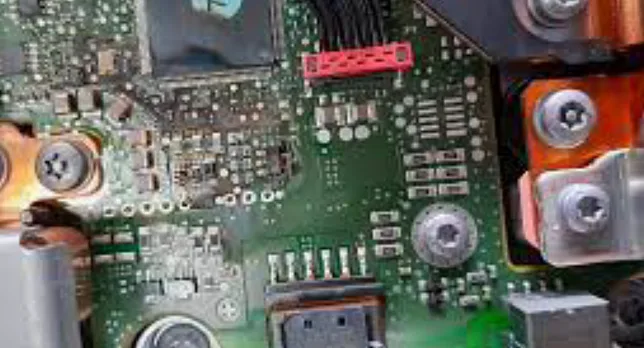

BMW Electrical Machine Electronics (EME) – How It Works & Repair Guide

The Electrical Machine Electronics (EME) is a critical component in BMW hybrid and electric vehicles. It acts as the control unit for the electric machine and high-voltage starter motor generator, ensuring smooth operation of the high-voltage system. Whether you are an automotive technician or an enthusiast looking to understand how the BMW EME works, this guide will break down its functionality, components, and troubleshooting techniques.

How Does the BMW Electrical Machine Electronics (EME) Work?
The EME system is responsible for managing the high-voltage electrical system in BMW hybrids. It operates in sync with the Battery Management Electronics (SME) to ensure proper energy distribution.

Here’s a simplified breakdown:

The EME is the master, while the SME acts as a slave, meaning the EME controls the battery management system.
Communication between both units occurs via the K-CAN5 bus.
The DC/DC converter integrated into the EME provides stable 12V power for the vehicle’s electrical system.
The EME converts high-voltage DC (up to 355V) into three-phase AC to power the electric machine.
During regenerative braking, the EME converts the three-phase AC back into DC to recharge the high-voltage battery.

Main Components of the BMW EME System
To fully grasp the function of BMW’s Electrical Machine Electronics, let’s look at its key components:
1. High-Voltage Connections

58-pin vehicle electrical system plug – Connects the EME to the car’s control systems.
4-pin high-voltage DC connection – Links to the hybrid battery.
3-pin high-voltage AC connection – Connects to the electric motor.
2-pin high-voltage DC connection – Additional power distribution link.

2. Electric Machine Components

Stator & Rotor – Core parts of the electric motor responsible for power conversion.
Permanent Magnets – Generate the necessary electromagnetic field.
Hollow Shaft & Separation Clutch – Crucial for smooth transmission of power.
Decoupler & Torsional Vibration Damper – Reduce vibrations for a smoother ride.
Temperature Sensors – Ensure proper cooling and prevent overheating.
Rotor Position Sensor – Provides accurate rotor positioning data to the EME.

Common BMW EME Issues & Diagnosis
BMW hybrid and electric vehicles may develop EME-related failures over time. Here’s what to look for:
1. Complete Failure of EME Communication

If the EME unit fails to communicate, start by running a global system scan.
Check for fault codes related to the EME.
If internal faults persist, the EME may need advanced diagnostics or replacement.

2. Battery Charging Issues

If the 12V battery is not charging, the issue may be within the DC/DC converter of the EME.
Perform voltage checks to confirm if the converter is functioning properly.

3. High-Voltage Errors

Inspect the high-voltage connections for any signs of corrosion or loose connections.
Faulty temperature sensors can trigger error codes leading to EME malfunctions.
