BMW MSV90 ECU Repair Guide Fix DTCs 134B02, 152004, 1F0404, 1F4A08, 20AB08
If you’ve got a BMW throwing strange DTCs like 134B02, 152004, or 1F0404, chances are you're dealing with a deeper MSV90 ECU hardware issue, not just a software glitch.
This isn’t your typical “clear and hope” diagnosis.
These codes often point to internal ECU faults that require real hardware repair skills. In this guide, we'll break down what each code means, why it happens, and how you can actually fix it, not just mask the issue.
This isn’t your typical “clear and hope” diagnosis.
These codes often point to internal ECU faults that require real hardware repair skills. In this guide, we'll break down what each code means, why it happens, and how you can actually fix it, not just mask the issue.
The MSV90 is BMW’s Digital Motor Electronics control unit found in various N52/N53 engines. It controls engine functions like ignition, fuel injection, valvetronic, and more. When it goes bad, it doesn’t just affect performance—it can leave the vehicle completely inoperable.
Let’s take a deeper look at the most common DTCs (Diagnostic Trouble Codes) on this unit.

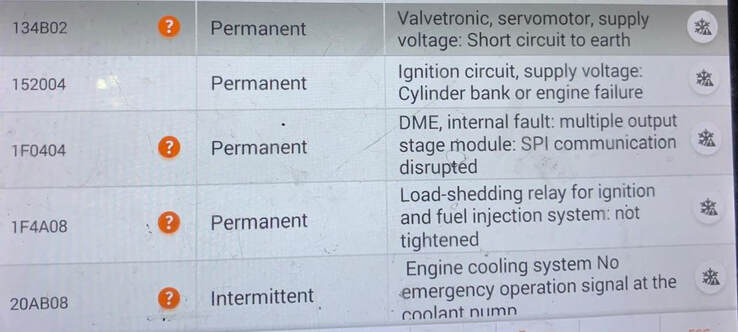

Common BMW MSV90 Fault Codes (DTCs) and What They Mean
1. 134B02 – Valvetronic Servomotor Supply Voltage: Short Circuit to Ground
What it means:
This code points to a direct short in the power circuit feeding the Valvetronic motor. It’s often caused by damaged traces, fried transistors, or corroded internal components.
Fix:
Open the ECU and inspect the servomotor driver stage. You may need to replace MOSFETs or reflow solder joints on the control side.
2. 152004 – Ignition Circuit, Supply Voltage: Cylinder Bank or Engine Failure
What it means:
Loss of ignition voltage on one or more cylinders. This is typically caused by failure in the ignition driver ICs or internal supply voltage regulators.
Fix:
Check for blown components on the output driver stage. Also, inspect the condition of ignition coils and wiring to rule out external shorts before opening the ECU.
3. 1F0404 – DME Internal Fault: Multiple Output Stage Module SPI Communication Disrupted
What it means:
The microcontroller inside the ECU has lost communication with one or more output stages via the SPI bus. It’s a classic sign of corrupted internal communication—often due to burned components or a failed output stage IC.
Fix:
You’ll need to test SPI line continuity and functionality. Replace or reball affected output drivers or reprogram the microcontroller in some cases.
4. 1F4A08 – Overload-Protection Relay for Ignition and Fuel Injection: Not Picked Up
What it means:
The ECU isn’t able to control the relay that powers the ignition and injectors. That means the engine won’t start or will misfire heavily.
Fix:
Trace the signal path from the driver IC to the relay control pin. Test the driver’s output and look for any faulty transistors or resistors.
5. 20AB08 – Engine Cooling System: No Emergency Operation Signal at Coolant Pump
What it means:
The emergency signal sent to the coolant pump is missing—this could overheat the engine and lead to a breakdown.
Fix:
Inspect the pump control circuit. If the output stage is healthy, the issue might lie in a broken signal pathway or corrupted firmware logic.
Want to Learn How to Fix These ECUs Yourself?
If you're serious about learning hands-on ECU hardware repair, not just swapping parts or replacing the whole DME, you're in the right place.
The ECU Hardware Repair Course by Electronic Repair Egypt teaches you how to:
You’ll gain practical skills and access to real case studies—perfect whether you’re a workshop tech or an advanced tuner.
Let’s take a deeper look at the most common DTCs (Diagnostic Trouble Codes) on this unit.
Common BMW MSV90 Fault Codes (DTCs) and What They Mean
1. 134B02 – Valvetronic Servomotor Supply Voltage: Short Circuit to Ground
What it means:
This code points to a direct short in the power circuit feeding the Valvetronic motor. It’s often caused by damaged traces, fried transistors, or corroded internal components.
Fix:
Open the ECU and inspect the servomotor driver stage. You may need to replace MOSFETs or reflow solder joints on the control side.
2. 152004 – Ignition Circuit, Supply Voltage: Cylinder Bank or Engine Failure
What it means:
Loss of ignition voltage on one or more cylinders. This is typically caused by failure in the ignition driver ICs or internal supply voltage regulators.
Fix:
Check for blown components on the output driver stage. Also, inspect the condition of ignition coils and wiring to rule out external shorts before opening the ECU.
3. 1F0404 – DME Internal Fault: Multiple Output Stage Module SPI Communication Disrupted
What it means:
The microcontroller inside the ECU has lost communication with one or more output stages via the SPI bus. It’s a classic sign of corrupted internal communication—often due to burned components or a failed output stage IC.
Fix:
You’ll need to test SPI line continuity and functionality. Replace or reball affected output drivers or reprogram the microcontroller in some cases.
4. 1F4A08 – Overload-Protection Relay for Ignition and Fuel Injection: Not Picked Up
What it means:
The ECU isn’t able to control the relay that powers the ignition and injectors. That means the engine won’t start or will misfire heavily.
Fix:
Trace the signal path from the driver IC to the relay control pin. Test the driver’s output and look for any faulty transistors or resistors.
5. 20AB08 – Engine Cooling System: No Emergency Operation Signal at Coolant Pump
What it means:
The emergency signal sent to the coolant pump is missing—this could overheat the engine and lead to a breakdown.
Fix:
Inspect the pump control circuit. If the output stage is healthy, the issue might lie in a broken signal pathway or corrupted firmware logic.
Want to Learn How to Fix These ECUs Yourself?
If you're serious about learning hands-on ECU hardware repair, not just swapping parts or replacing the whole DME, you're in the right place.
The ECU Hardware Repair Course by Electronic Repair Egypt teaches you how to:
- Diagnose complex DME/MSV90 faults
- Test and replace failed ECU components
- Understand power supply, communication buses (SPI/CAN), and microcontroller logic
- Work with lab tools like oscilloscopes and hot air stations
You’ll gain practical skills and access to real case studies—perfect whether you’re a workshop tech or an advanced tuner.
