BMW engines are packed with advanced electronics, and when the DME starts throwing fault codes, many owners immediately fear the worst. The good news is that most BMW DME DTCs can be diagnosed correctly with the right approach before replacing expensive parts.
We’ll break down some common BMW DME fault codes, explain what actually causes them, and show practical repair solutions used by ECU repair specialists every day.
We’ll break down some common BMW DME fault codes, explain what actually causes them, and show practical repair solutions used by ECU repair specialists every day.

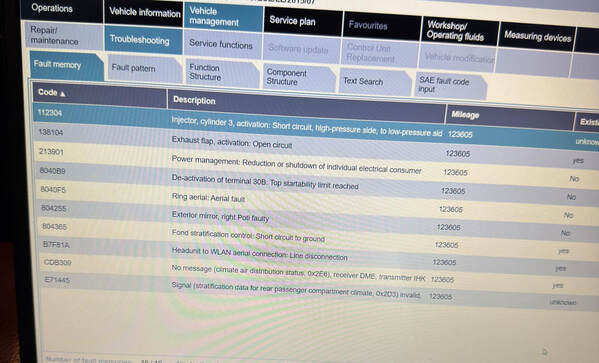

BMW DME Fault Codes List
112304
Injector, cylinder 3 activation: Short circuit
138104
Exhaust flap activation: Open circuit
213901
Power management: Reduction or shutdown of electrical consumer
8040B9D
e-activation of terminal 30B
804365
Fond stratification control: Short circuit to ground
CDB309
No message from climate air distribution status
112304 — Injector Cylinder 3 Activation Short Circuit
This fault usually appears when the DME detects an electrical issue in injector cylinder 3 control.
Common Causes
One of the biggest mistakes is replacing the injector immediately without checking injector resistance and DME output signals.
A healthy BMW injector circuit should show:
Recommended Checks
138104 — Exhaust Flap Activation Open Circuit
This code is common on turbocharged BMW engines equipped with electronically controlled exhaust flaps.
Symptoms
Repair Tip
Always inspect the actuator physically before replacing parts. Sometimes the linkage itself becomes jammed from carbon buildup.
213901 — Power Management Fault
This fault is extremely common in BMW vehicles with weak batteries or charging problems.
What It Means
The vehicle power management system is shutting down non-essential electrical consumers to protect battery voltage.
Common Causes
BMW vehicles require battery registration after replacement. Failure to register the battery can trigger repeated power management faults.
Recommended Diagnosis
8040B9 — Terminal 30B Deactivation
This code usually appears together with battery voltage issues.
Main Causes
Real-World Solution
In many cases, installing a new AGM battery and properly registering it solves the issue completely.
804365 — Stratification Control Short Circuit to Ground
This fault is related to BMW climate control air distribution systems.
Possible Causes
CDB309 — No Message from Climate Air Distribution Status
Communication faults like CDB309 often confuse many technicians because the problem may not be the DME itself.
What Causes This Fault?The DME is not receiving expected CAN communication data from the climate control module.
Possible Reasons
Always check battery voltage and CAN network stability first before replacing modules.
Why Proper BMW ECU Diagnosis Matters
Modern BMW systems are highly interconnected. A single voltage issue can trigger multiple unrelated fault codes.
This is why experienced ECU technicians never replace parts based only on fault memory.
Correct diagnosis includes:
Common BMW Electrical Problems That Trigger Multiple DTCs
Many BMW owners notice several fault codes appearing together. In real workshop conditions, these problems are usually connected to:
Professional ECU Hardware Repair Training
If you want to learn professional ECU hardware diagnostics and real electronic repair methods used by advanced automotive technicians, these training resources are extremely valuable.
Join ECU Hardware Repair
ECU Hardware Repair Training
Join ECU Repair Manuals
ECU Repair Manuals Library
These resources cover:
112304
Injector, cylinder 3 activation: Short circuit
138104
Exhaust flap activation: Open circuit
213901
Power management: Reduction or shutdown of electrical consumer
8040B9D
e-activation of terminal 30B
804365
Fond stratification control: Short circuit to ground
CDB309
No message from climate air distribution status
112304 — Injector Cylinder 3 Activation Short Circuit
This fault usually appears when the DME detects an electrical issue in injector cylinder 3 control.
Common Causes
- Shorted fuel injector
- Damaged injector wiring
- Internal DME driver failure
- Water damage near injector harness
- Poor engine grounding
One of the biggest mistakes is replacing the injector immediately without checking injector resistance and DME output signals.
A healthy BMW injector circuit should show:
- Stable injector resistance
- Proper voltage supply
- Clean PWM signal from DME
Recommended Checks
- Measure injector resistance
- Check wiring continuity
- Inspect DME connector pins
- Test injector activation with oscilloscope
- Inspect for oil or coolant contamination
138104 — Exhaust Flap Activation Open Circuit
This code is common on turbocharged BMW engines equipped with electronically controlled exhaust flaps.
Symptoms
- Loud exhaust sound
- Exhaust flap stuck open
- Reduced low-end torque
- Check engine light
- Broken exhaust flap actuator
- Damaged actuator wiring
- Corroded connector
- Failed control module output
Repair Tip
Always inspect the actuator physically before replacing parts. Sometimes the linkage itself becomes jammed from carbon buildup.
213901 — Power Management Fault
This fault is extremely common in BMW vehicles with weak batteries or charging problems.
What It Means
The vehicle power management system is shutting down non-essential electrical consumers to protect battery voltage.
Common Causes
- Weak battery
- Bad IBS sensor
- Alternator charging issue
- Excessive parasitic drain
- Poor battery registration
BMW vehicles require battery registration after replacement. Failure to register the battery can trigger repeated power management faults.
Recommended Diagnosis
- Test battery health
- Check charging voltage
- Scan IBS sensor data
- Measure current draw during sleep mode
8040B9 — Terminal 30B Deactivation
This code usually appears together with battery voltage issues.
Main Causes
- Battery voltage dropping below threshold
- Intelligent battery sensor issues
- Power distribution faults
- Energy management shutdown
Real-World Solution
In many cases, installing a new AGM battery and properly registering it solves the issue completely.
804365 — Stratification Control Short Circuit to Ground
This fault is related to BMW climate control air distribution systems.
Possible Causes
- Shorted air flap motor
- Wiring harness damage
- Climate control module fault
- Water intrusion inside HVAC area
- Uneven cabin temperature
- Airflow issues
- HVAC malfunction
- Clicking sounds behind dashboard
CDB309 — No Message from Climate Air Distribution Status
Communication faults like CDB309 often confuse many technicians because the problem may not be the DME itself.
What Causes This Fault?The DME is not receiving expected CAN communication data from the climate control module.
Possible Reasons
- CAN bus interruption
- Faulty IHKA module
- Wiring issue
- Low voltage condition
- Water damage
Always check battery voltage and CAN network stability first before replacing modules.
Why Proper BMW ECU Diagnosis Matters
Modern BMW systems are highly interconnected. A single voltage issue can trigger multiple unrelated fault codes.
This is why experienced ECU technicians never replace parts based only on fault memory.
Correct diagnosis includes:
- Live data analysis
- Wiring inspection
- Oscilloscope testing
- Power supply verification
- CAN network testing
Common BMW Electrical Problems That Trigger Multiple DTCs
Many BMW owners notice several fault codes appearing together. In real workshop conditions, these problems are usually connected to:
- Weak battery voltage
- Grounding issues
- Water damage
- Faulty alternator
- Corrupted DME communication
Professional ECU Hardware Repair Training
If you want to learn professional ECU hardware diagnostics and real electronic repair methods used by advanced automotive technicians, these training resources are extremely valuable.
Join ECU Hardware Repair
ECU Hardware Repair Training
Join ECU Repair Manuals
ECU Repair Manuals Library
These resources cover:
- ECU internal circuit diagnostics
- Injector driver repair
- CAN bus troubleshooting
- Sensor signal analysis
- Automotive electronics repair techniques
