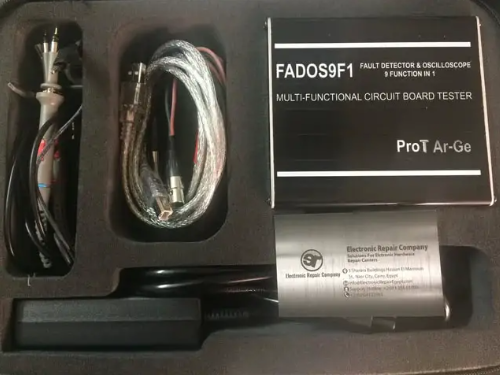

In the rapidly evolving landscape of electronic diagnostics, the ProT Ar-Ge FADOS9F1 Fault Detector and Oscilloscope stands out as a game-changer for troubleshooting all types of electronic boards. This cutting-edge tool operates with "VI Test Voltage - Control Analysis" PC software, providing a comprehensive solution for technicians and engineers.
​

Signature Analysis for Precise Troubleshooting
One of the key features of the FADOS9F1 is Signature Analysis, a power-off test method that troubleshoots circuit boards by applying a current-limited sine wave through a serial resistor point of touch on the circuit. The resulting Voltage-Current (Signature) graph is displayed on the computer screen, aiding in the identification of potential issues.

Dual-Channel Fault Detection and Memory Function
The FADOS9F1 excels in dual-channel fault detection by comparing the current-voltage characteristics (signatures) of a working and a faulty circuit board without applying power. Additionally, signatures of a functioning board can be stored for future reference, allowing for efficient troubleshooting based on known working conditions.

Equivalent Circuit Diagram and Display Values
The tool goes beyond basic diagnostics by displaying an equivalent circuit diagram corresponding to the characteristics of the touched point. Furthermore, it provides calculated values of resistance, capacitors, and diode threshold voltages, offering valuable insights into the electronic components at the contact point.

Dual-Channel Digital PC Oscilloscope and Additional Features
The FADOS9F1 serves dual purposes as a Digital PC Oscilloscope when needed. It also features a 0.2 to 25KHz Square Wave Signal Output and an Analog Voltage Output with sensitivity, expanding its functionality for various diagnostic scenarios.
​
Programmable DC Power Supply and IR Temperature Sensor
Two standout features differentiate the FADOS9F1 from its predecessor, the FADOS7F1. The Programmable DC Power Supply allows adjustable output voltage (0-16V) and current (20-1500mA), enabling the creation of Power DC Voltage-Current Graphs for electronic cards. The IR Remote Temperature Measurement Sensor detects heated components, aiding in troubleshooting by producing a heat map of the circuit board.

Efficient Troubleshooting Technique
The FADOS9F1 introduces a novel troubleshooting technique where the intact board's power graph is used as a reference for testing defective boards. The combination of the Programmable DC Power Supply and IR Temperature Sensor significantly reduces troubleshooting time by 5 to 10 times.

Order Your FADOS9F1 Tester Now
Experience the future of electronic board diagnostics with the ProT Ar-Ge FADOS9F1 Fault Detector and Oscilloscope. Order your FADOS9F1 Tester now from Electronic Repair Egypt and elevate your troubleshooting capabilities.
