Advanced Fault Detection Techniques in Electronic Cards

Fault Detection Techniques in Electronic Cards

When it comes to electronic repair, beginners often rely on multimeters to measure resistance, capacitance, or diode conduction voltage.
However, this method can be both time-consuming and insufficient for complex circuits.
​Professional technicians prefer using VI test devices, which offer graphical representations of resistance, capacitance, and diode functions, making fault detection faster and more precise.

Why Are VI Test Devices Superior to Multimeters?
VI (Voltage-Current) test devices provide two major advantages over traditional multimeters:

1. Speed & Efficiency: VI devices instantly analyze the touched point, significantly reducing troubleshooting time.
2. Higher Voltage Application: Unlike multimeters, VI testers apply a higher voltage safely through a resistance, making defects that appear only under load conditions visible.

Types of VI Test Devices
Some VI test devices display only a VI curve, while more advanced models come with additional functionalities:

• Memory Feature: This allows users to record test points and compare them with a faulty card.
• Graphical Data Representation: The device can store and recall measurement data, aiding in quick diagnostics.

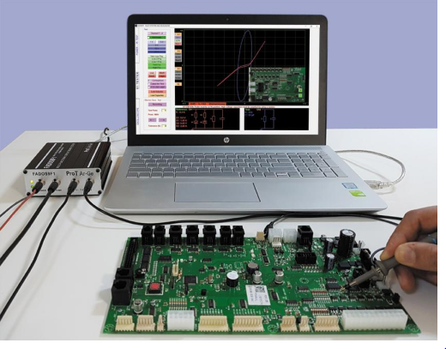

FADOS: The Ultimate Solution for Fault Detection
FADOS devices take electronic fault detection to the next level by offering features not found in standard VI testers:

• Equivalent Circuit Diagram Display: Unlike a multimeter, which struggles with parallel resistance detection, FADOS software simultaneously displays capacitance and resistance values.
• Memory Recording & Comparison: The software guides the user by showing where to probe on the circuit. If the reading is within the set tolerance, an "OK" signal is given; if not, an alert is triggered, indicating a faulty component.

Application Areas of Fault Detection
Fault detection techniques, particularly using VI testers and FADOS devices, are essential in diagnosing electronic components in various industries, including:

• Automotive ECU electronic cards
• Servo and stepper motor drivers
• Medical and military electronic device circuits
• Computer, laptop, and monitor circuits
• Television and radio electronic boards
• Industrial and textile production machine circuits

Why Choose FADOS?

1. Dual-Channel VI Testing: FADOS operates with 2.5 mV sensitivity and captures 720 different voltage-current measurements, ensuring precision.
2. Real-Time Comparison: Allows simultaneous testing of a working and a faulty card, highlighting discrepancies immediately.
3. Comprehensive Analysis: Displays complete circuit behavior, making it easier to locate faults that traditional tools might miss.

In electronic repair, using the right tools makes all the difference. While traditional multimeters are helpful for basic measurements, advanced VI test devices and FADOS technology provide a faster, more accurate, and comprehensive approach to diagnosing faults in electronic circuits. Whether you're working with automotive ECUs, industrial machines, or consumer electronics, investing in the right diagnostic equipment will enhance efficiency and precision.

By integrating VI testing and FADOS solutions into your repair workflow, you can save time, reduce guesswork, and ensure a higher success rate in electronic fault detection.
